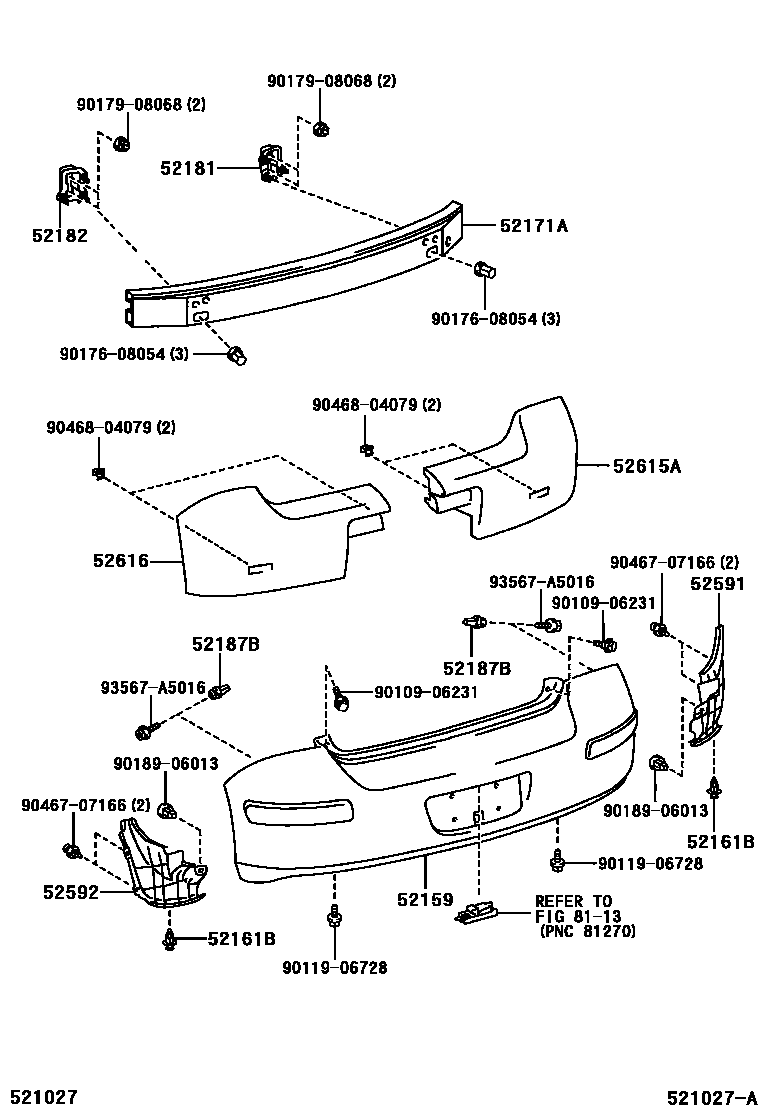

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-52917iNCP13200306-200508

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×2iNCP13200306

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-52070iNCP13200306-200508

52181ARM, REAR BUMPER, RH

main52181-52060iNCP13200306-200508

52182ARM, REAR BUMPER, LH

main52182-52060iNCP13200306-200508

52187BGUIDE, REAR BUMPER LOCATION

main52187-52010×2iNCP13200306-200508

52591SEAL, REAR BUMPER SIDE, RH

main52591-52160iNCP13200306-200508

52592SEAL, REAR BUMPER SIDE, LH

main52592-52160iNCP13200306-200508

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-52060iNCP13200306

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-52060iNCP13200306

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

9010906231

main90109-06231

9011906728

main90119-06728

9017608054

main90176-08054

9017908068

main90179-08068

9018906013

main90189-06013

9046707166

main90467-07166

9046804079

main90468-04079

93567A5016

main93567-A5016

19 parts on this diagram · 1 diagram in section
