SPARE WHEEL CARRIER

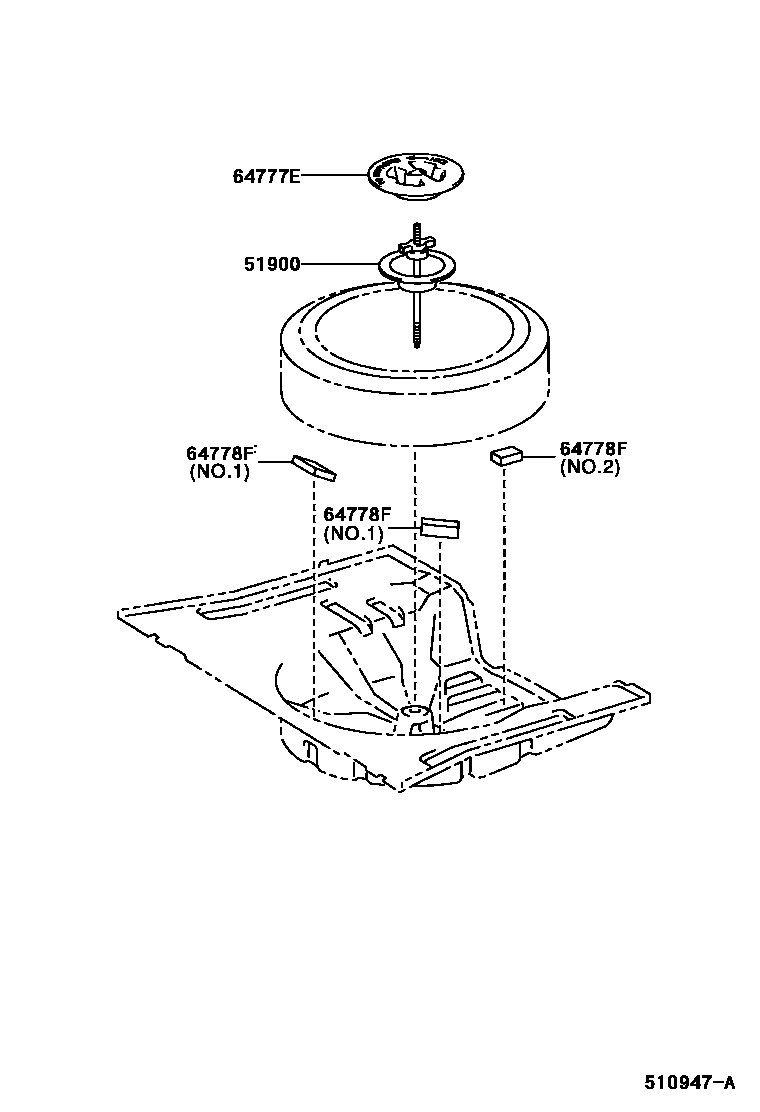

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-52040i200306

64777ECLAMP, SPARE WHEEL COVER

main64777-12010i200306

64778FPROTECTOR, SPARE WHEEL

main64778-52050×2i200306

NO.1

main64778-52080i200306

NO.2

3 parts on this diagram · 1 diagram in section
