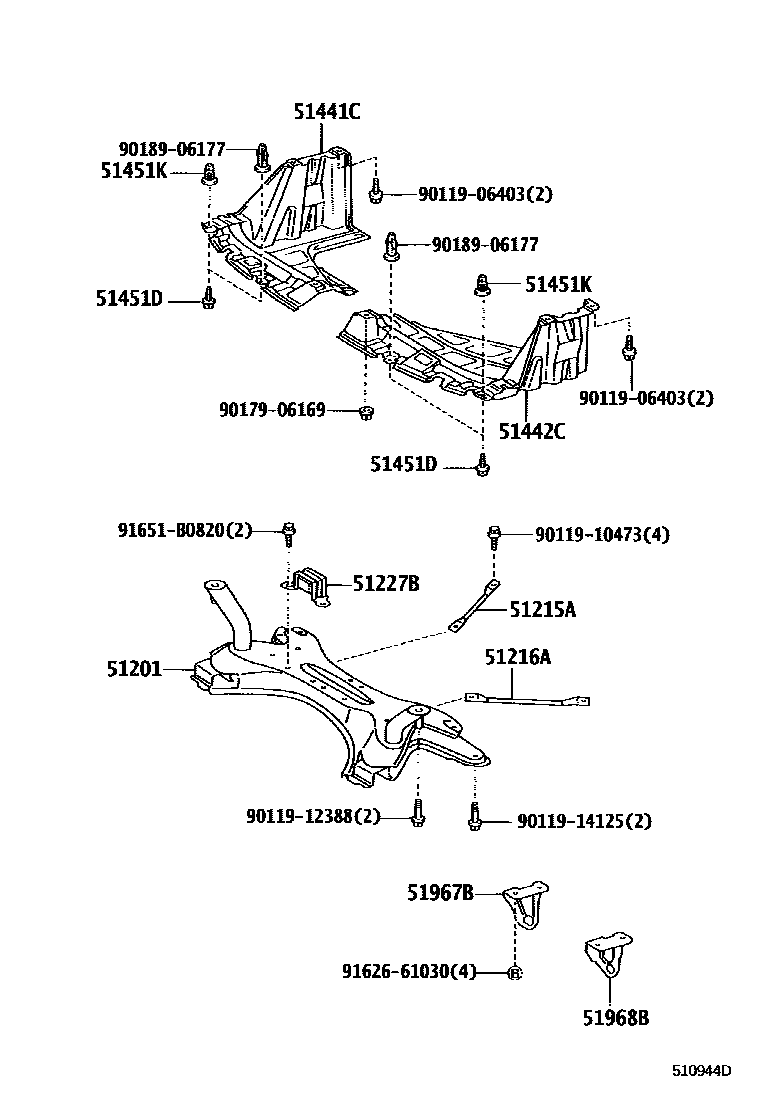

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52014iNCP13200306

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51215-52010iNCP13200306

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51215-52010iNCP13200306

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-52030iNCP13200306

51441CCOVER, ENGINE UNDER, RH

main51441-52010iNCP13200306

51442CCOVER, ENGINE UNDER, LH

main51442-52010iNCP13..ATM200306

main51442-52030iNCP13..MTM200306

51451DSCREW, NO.1

main90159-60383iNCP13200306

51451KGROMMET, SCREW, NO.1

main90189-06076iNCP13200306

51967BHOOK, TRANSPORT, REAR RH

main51967-52030iNCP13200306

51968BHOOK, TRANSPORT, REAR LH

main51967-52030iNCP13200306

9011906403

main90119-06403

9011910473

main90119-10473

9011912388

main90119-12388

9011914125

main90119-14125

9017906169

main90179-06169

9018906177

main90189-06177

9162661030

main91626-61030

91651B0820

main91651-B0820

18 parts on this diagram · 1 diagram in section
