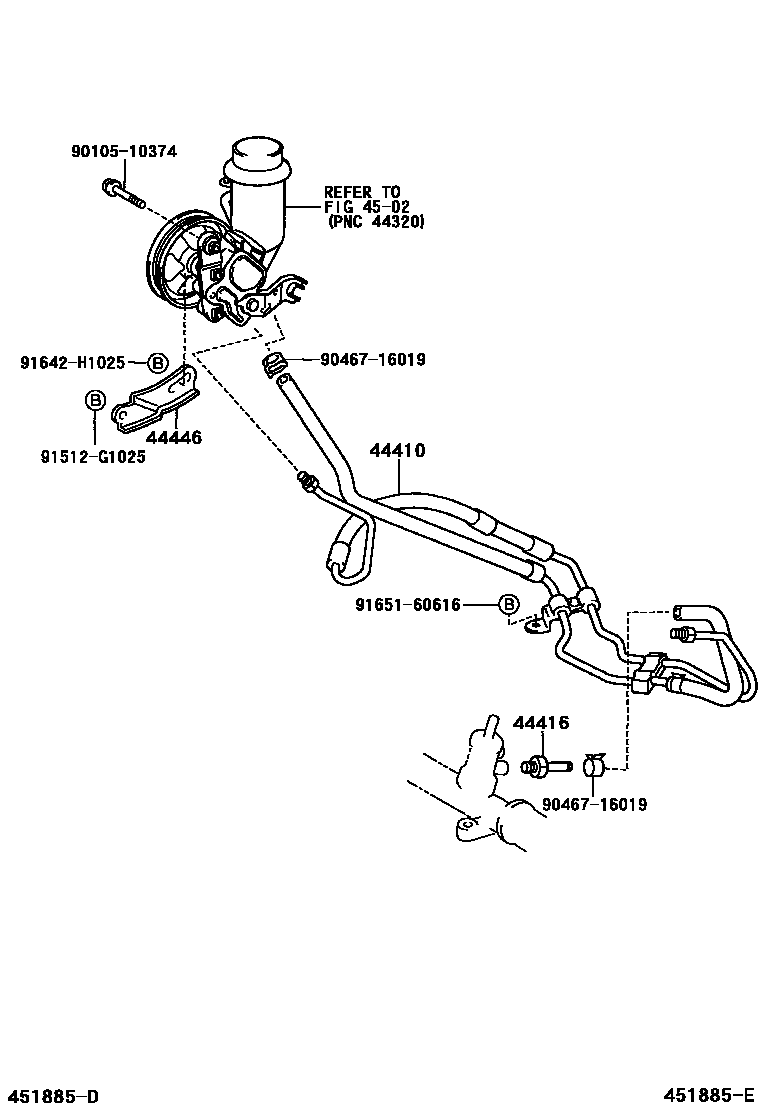

POWER STEERING TUBE

44410TUBE ASSY, PRESSURE FEED

main44410-52041iNCP13200306

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-52010iNCP13200306

44446STRUT, ADJUSTING

main44446-52010iNCP13200306

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

9010510374

main90105-10374

9046716019

main90467-16019

91512G1025

main91512-G1025

91642H1025

main91642-H1025

9165160616

main91651-60616

9 parts on this diagram · 1 diagram in section
