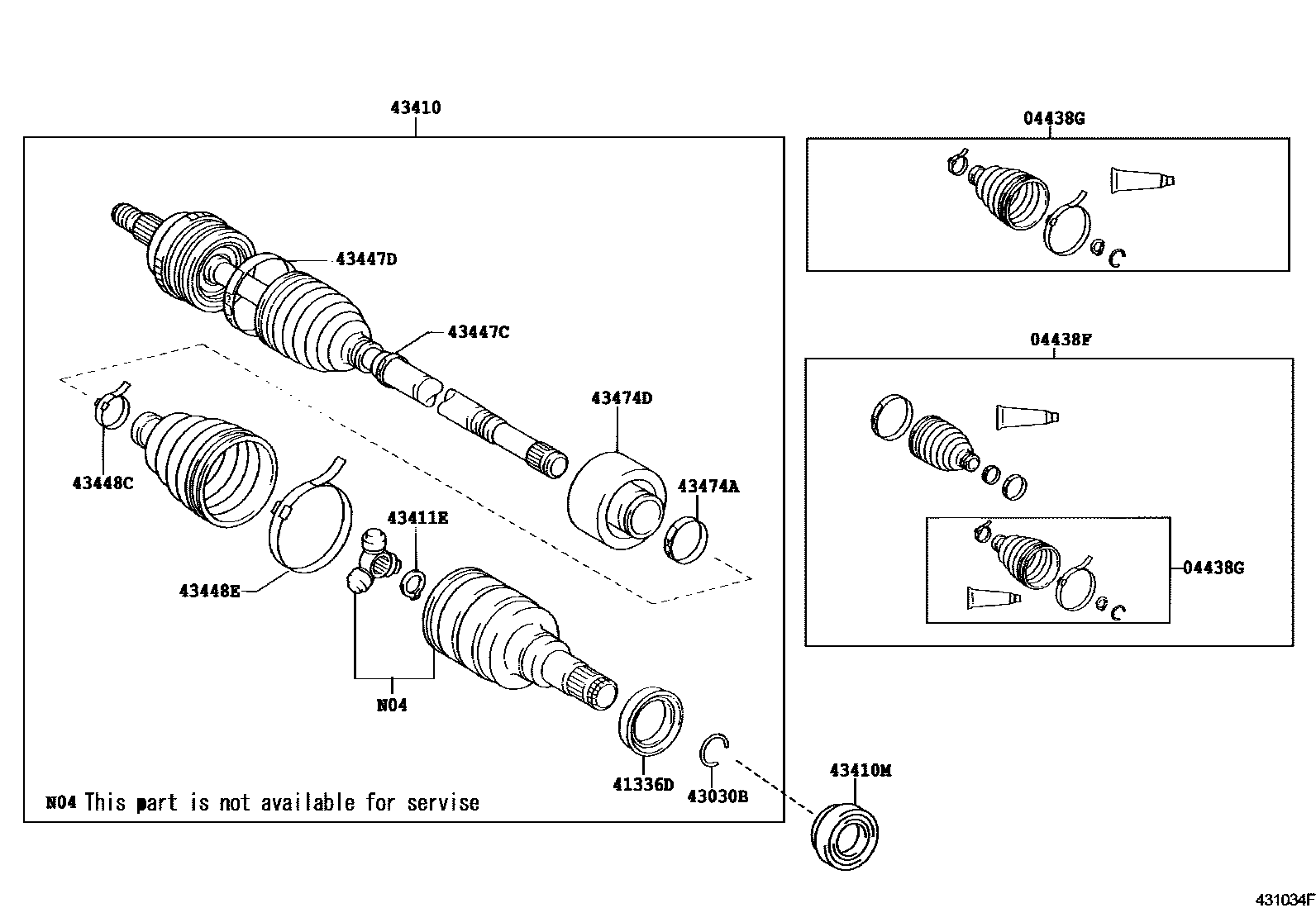

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-52260iNCP13200505-200508

sub04427-52580

main04438-52041iNCP13200306-200505

sub04438-52042

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-52030iNCP13200306-200505

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNCP13200306

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-26004iNCP13200306

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52060iNCP13200306

sub43410-52061

main43410-52070iNCP13200306

W(ABS)

sub43410-52071

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNCP13..ATM200306-200507

main90311-34031iNCP13..ATM200507-200508

sub90311-34045

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNCP13200306

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52110iNCP13200306

sub42345-52260

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNCP13200306

sub42345-52250

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNCP13200306

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNCP13200306

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNCP13200306

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNCP13200306

13 parts on this diagram · 2 diagrams in section
