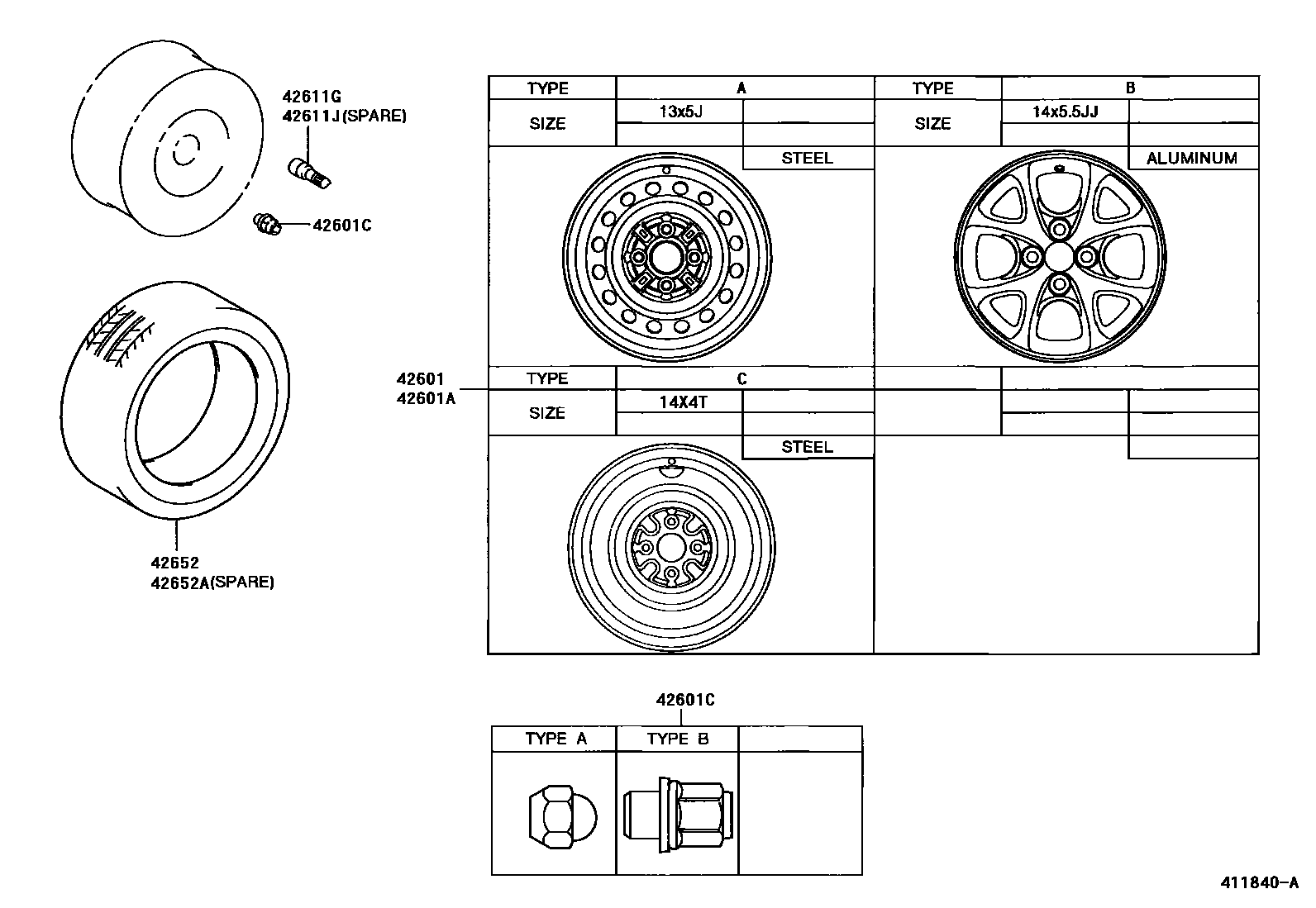

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-52030×4iNCP13200306

14X5.5J, #,TYPE A:REFER TO ILLUSTRATION

main42611-52040×4iNCP13..5D200306

14X5.5JJ,OFFSET 45,#,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-1A260iNCP13200306

14X4T,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×16iNCP13200306-200308

TYPE A:REFER TO ILLUSTRATION

main90942-01033×16iNCP13..5D200306

TYPE B:REFER TO ILLUSTRATION

main90942-01082×16iNCP13200308

TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iNCP13200306

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNCP13200306

42652TIRE

main42652-52110×4iNCP13200306-200508

175/65R14

42652ATIRE (FOR SPARE)

main42652-16220iNCP13200306-200508

T115/70D14

7 parts on this diagram · 3 diagrams in section
