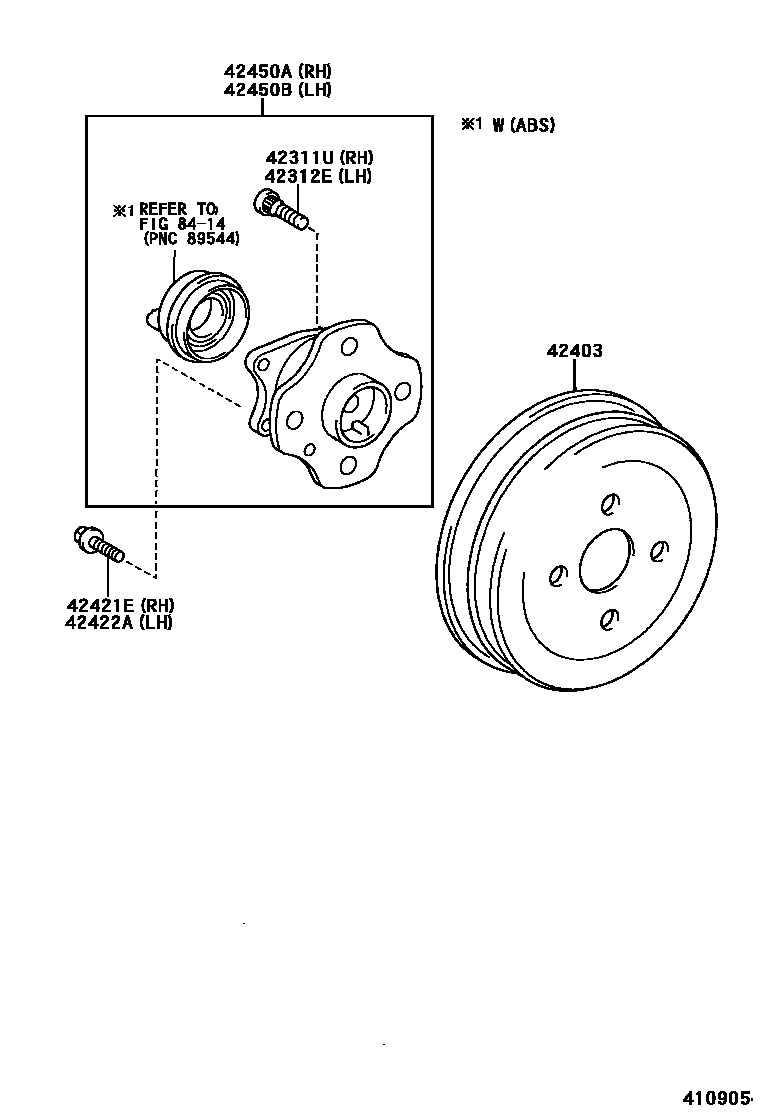

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047×4iNCP13200306

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047×4iNCP13200306

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52011×2iNCP13200306-200508

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10507×4iNCP13200306

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10507×4iNCP13200306

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52021iNCP13200306

main42450-52021iNCP13200306

W(ABS)

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52021iNCP13200306

main42450-52021iNCP13200306

W(ABS)

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 1 diagram in section
