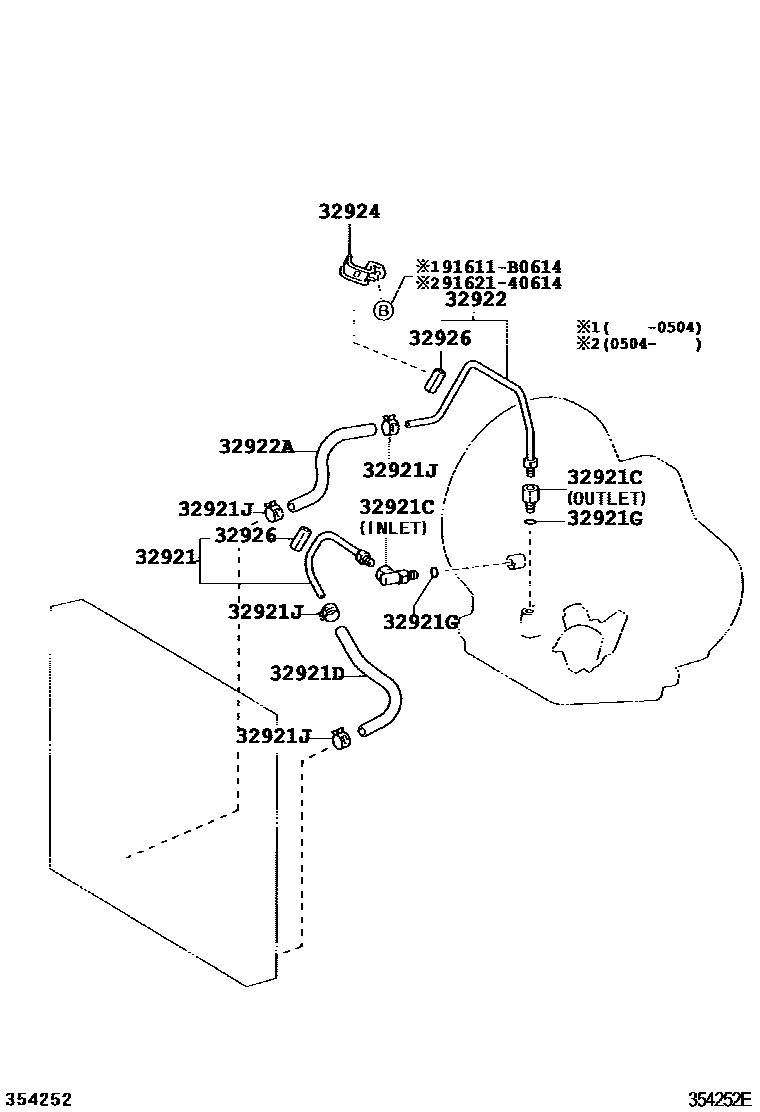

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52060iNCP13..ATM200306-200508

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCP13..ATM200306-200508

OUTLET

main90407-14003iNCP13..ATM200306-200508

INLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15046iNCP13..ATM200306

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iNCP13..ATM200306

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300iNCP13..ATM200306-200403

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52060iNCP13..ATM200306-200508

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iNCP13..ATM200306-200508

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20100iNCP13..ATM200306-200504

main32924-52010iNCP13..ATM200504

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iNCP13..ATM200306

L=30,ID=8

91611B0614

main91611-B0614

9162140614

main91621-40614

11 parts on this diagram · 1 diagram in section
