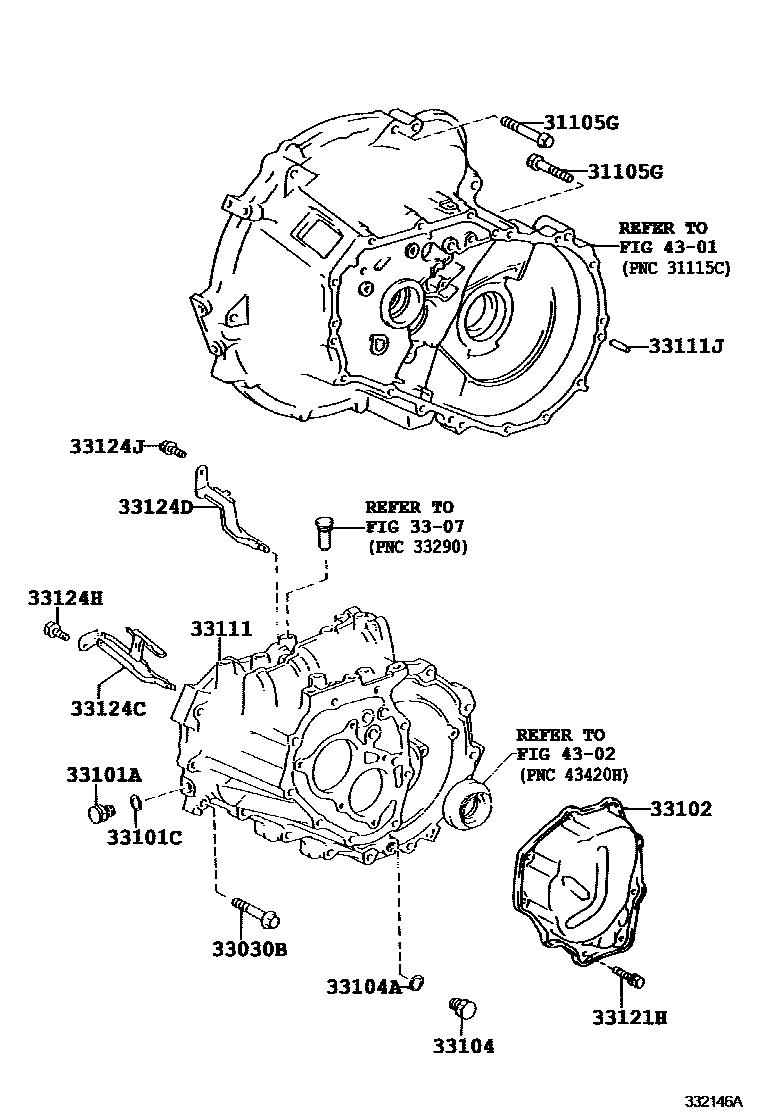

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61050×7iNCP13..MTM200306

*10-1.25PX50-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×16iNCP13..MTM200306-200408

*8-1.25PX45-27.5

main90105-08430×16iNCP13..MTM200408

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iNCP13..MTM200306-200506

main90341-18033iNCP13..MTM200506

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP13..MTM200306

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iNCP13..MTM200306

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iNCP13..MTM200306-200506

main90341-18033iNCP13..MTM200506

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP13..MTM200306

33111CASE, MANUAL TRANSMISSION

main33111-16053iNCP13..MTM200306

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iNCP13..MTM200306

L=23,OD=8

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08373×9iNCP13..MTM200306

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iNCP13..MTM200306

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iNCP13..MTM200306

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP13..MTM200306

33124JBOLT, W/WASHER

main91611-G0820iNCP13..MTM200306

4301

4302

17 parts on this diagram · 1 diagram in section
