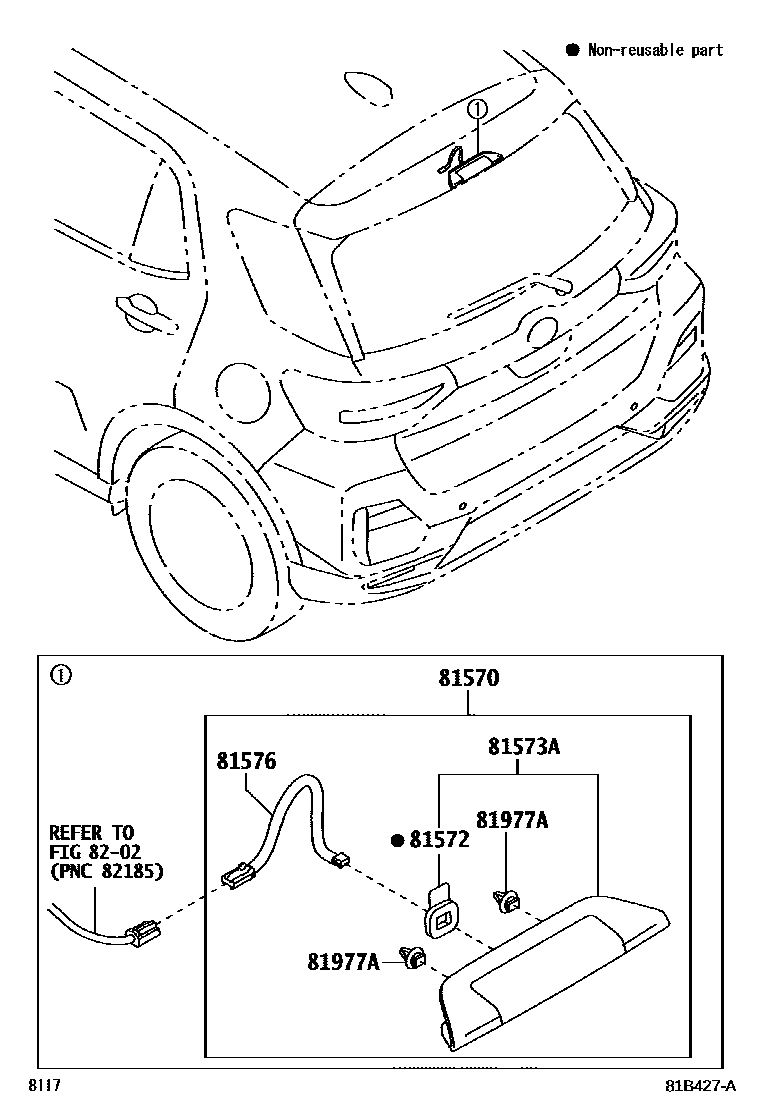

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-BZ280iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81572GASKET, CENTER STOP LAMP

main81572-BZ040iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81573AHOUSING UNIT ASSY

main81573-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81576SOCKET & WIRE, CENTER STOP LAMP

main81576-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

81977ACLIP (FOR CENTER STOP LAMP)

main53145-B1020×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

8202WIRING & CLAMP

→ Go to FIG 82-02

6 parts on this diagram · 1 diagram in section
