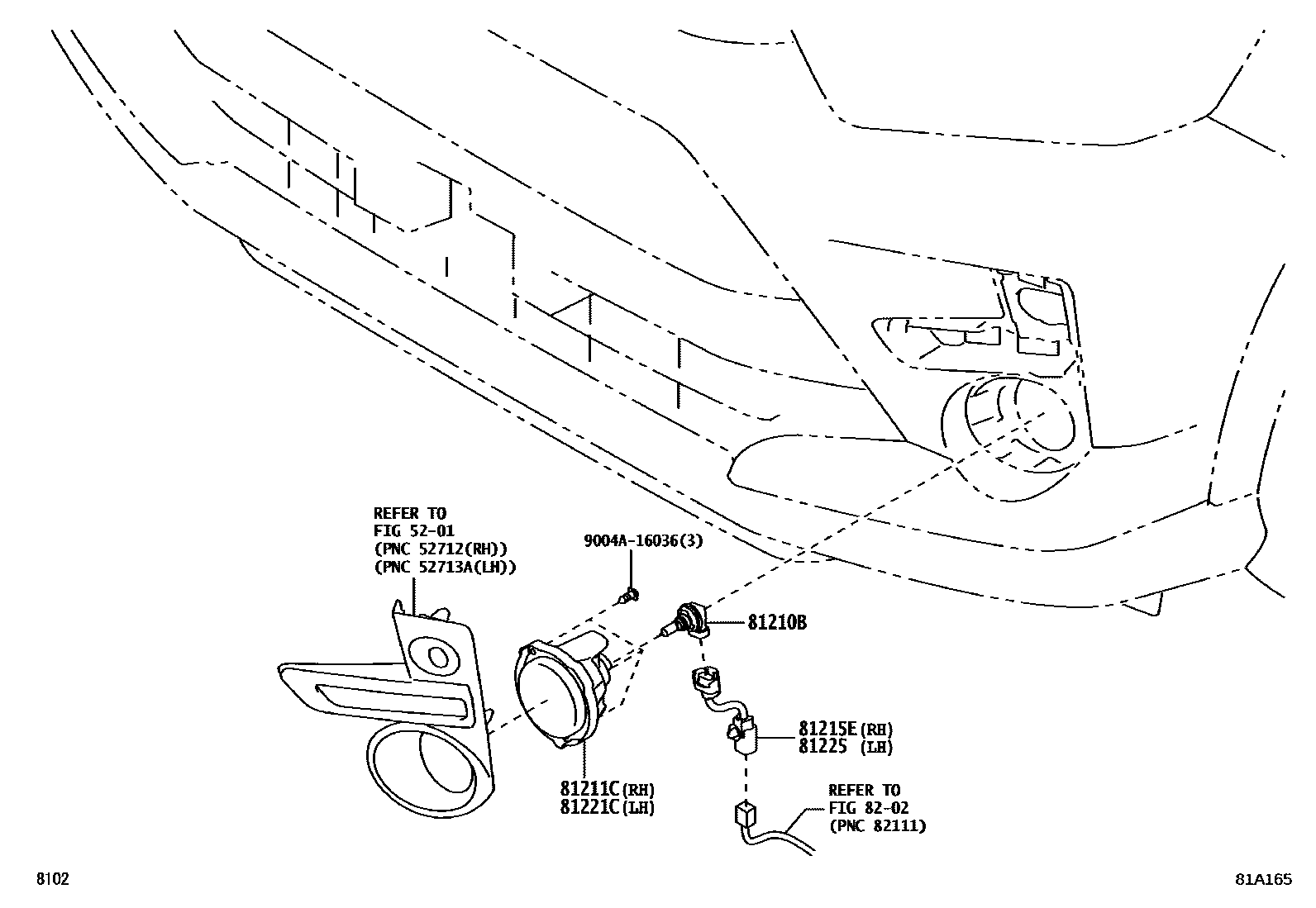

FOG LAMP

0001 1 0003 1W/DRL

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210BBULB, FOG LAMP

main90049-51185×2iA251..V..CHL;A251..IDN,PHL;A250..GEN,IDN,PHL202104-202608

12V 19W H16

81211CLAMP UNIT, FOG LAMP, RH

main81211-BZ080iA251..PHL;A251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

main81211-BZ090iA25#..X..IDN202104-202606

81215ECORD, FOG LAMP

main81215-BZ020iA251..PHL;A251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

main81215-BZ030iA25#..X..IDN202104-202606

81221CLAMP UNIT, FOG LAMP, LH

main81221-BZ080iA251..PHL;A251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

main81221-BZ090iA25#..X..IDN202104-202606

81225CORD, FOG LAMP

main81215-BZ020iA251..PHL;A251..V..CHL;A250..V..(GEN,IDN,PHL)202104-202608

main81215-BZ030iA25#..X..IDN202104-202606

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A16036

main9004A-16036

8 parts on this diagram · 2 diagrams in section
