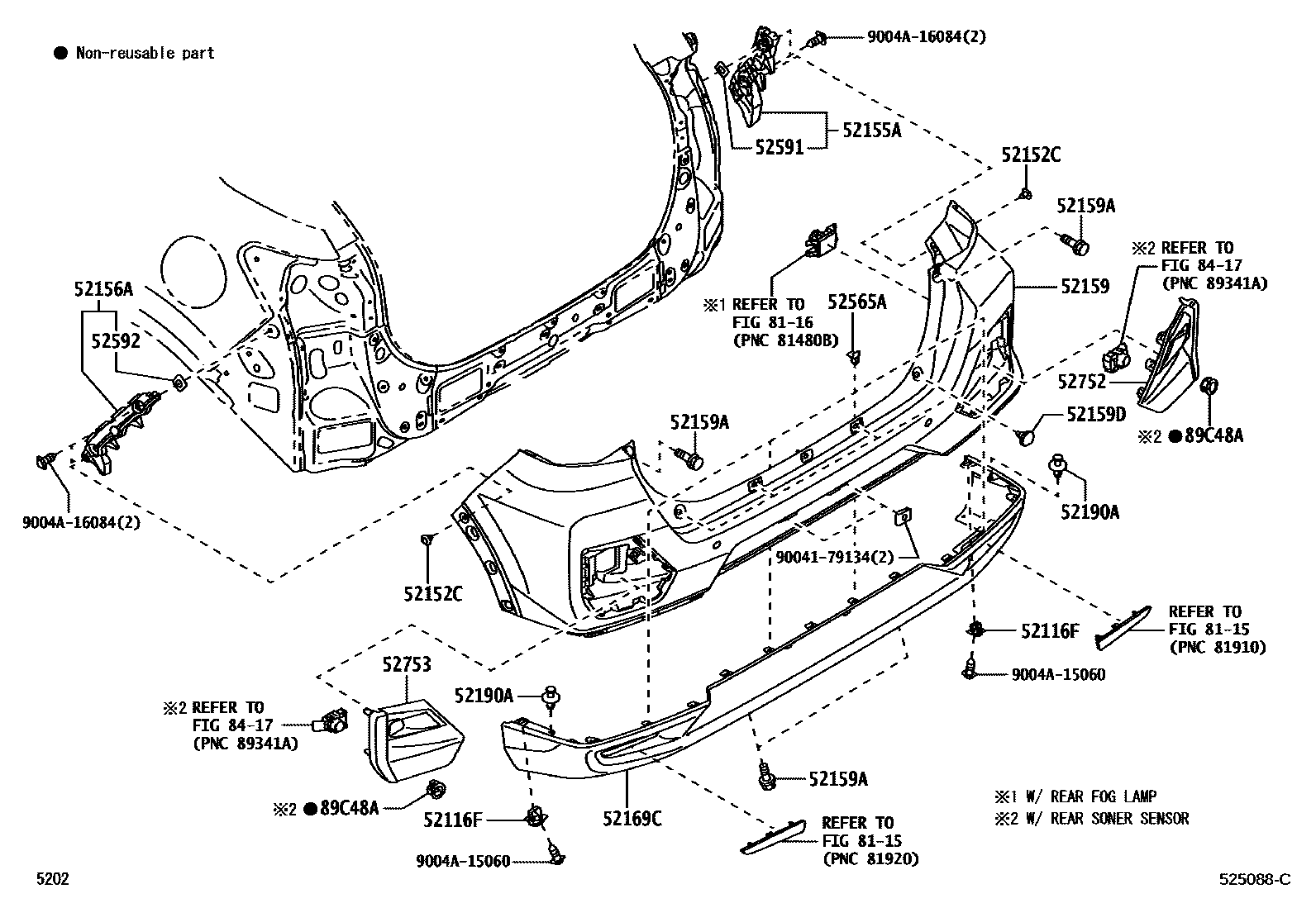

REAR BUMPER & BUMPER STAY

0001 1 0003 1

52116FRETAINER, REAR BUMPER

main52116-B1070×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52152CCLIP, REAR BUMPER SIDE

main9004A-46380×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ190iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ190iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52159COVER, REAR BUMPER

main52159-BZP50iA25#..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

PAINT REQ.,W/SENSOR HOLE

main52159-BZP60iA25#..GCC;A251..5F..L202108-202608

PAINT REQ.,W/O SENSOR HOLE

52159ABOLT(FOR REAR BUMPER COVER)

main90041-05546×4iA25#202104-202308

M6,L=18

main9004A-10248×4iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202309-202608

M6,L=18

52159DCLIP, REAR BUMPER COVER

main90044-68381×4iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52169CCOVER, REAR BUMPER, LOWER

main52169-BZ060iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

NO PAINT REQ.

52190ACLIP

main9004A-46380×2iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52565ARETAINER, REAR BUMPER, LOWER

main76854-BZ010×4iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52591SEAL, REAR BUMPER SIDE, RH

main15528-BZ030×3iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52592SEAL, REAR BUMPER SIDE, LH

main15528-BZ030×3iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

52752MOULDING, REAR BUMPER SIDE, RH

main52752-BZ080iA251..5F;A251..L..GCC;A250..LHD..GEN;A251..CVT..(V,X);A250..GCC,IDN,PHL202104-202608

main52752-BZ090iA250..RHD..GEN202108-202607

52753MOULDING, REAR BUMPER SIDE, LH

main52753-BZ080iA251..5F;A250..GEN,IDN,PHL;A251..CVT..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

main52753-BZ090iA25#..GCC202110-202608

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-BZ110-A0×2iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

WHITE,W09 ,XJ7

main89348-BZ110-A1×2iA25#..V..(CHL,GEN,PHL); A251..X..(CHL,GEN,PHL)202108-202608

WHITE PEARL SE.,W25; WHITE PEARL SE.,W25 ,XJ5

main89348-BZ110-B0×2iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

SILVER ME.,S28 ,XK4

main89348-BZ110-B1×2iA25#..(V,X)..(CHL,GEN,IDN,PHL)202104-202608

GRAY ME.,1G3

main89348-BZ110-C0×2iA250..RHD;A251..IDN,PHL202104-202607

BLACK,X13

main89348-BZ110-D0×2iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

RED,R40 ,XJ9

main89348-BZ110-F0×2iA251..V;A251..IDN;A250..GEN,IDN,PHL202104-202608

YELLOW SE.,XK1 ,Y13

main89348-BZ110-J0×2iA251..X..(CHL,GEN,PHL)202108-202608

TURQUOISE M.M.,B86

9004179134

main90041-79134

9004A15060

main9004A-15060

9004A16084

main9004A-16084

21 parts on this diagram · 2 diagrams in section
