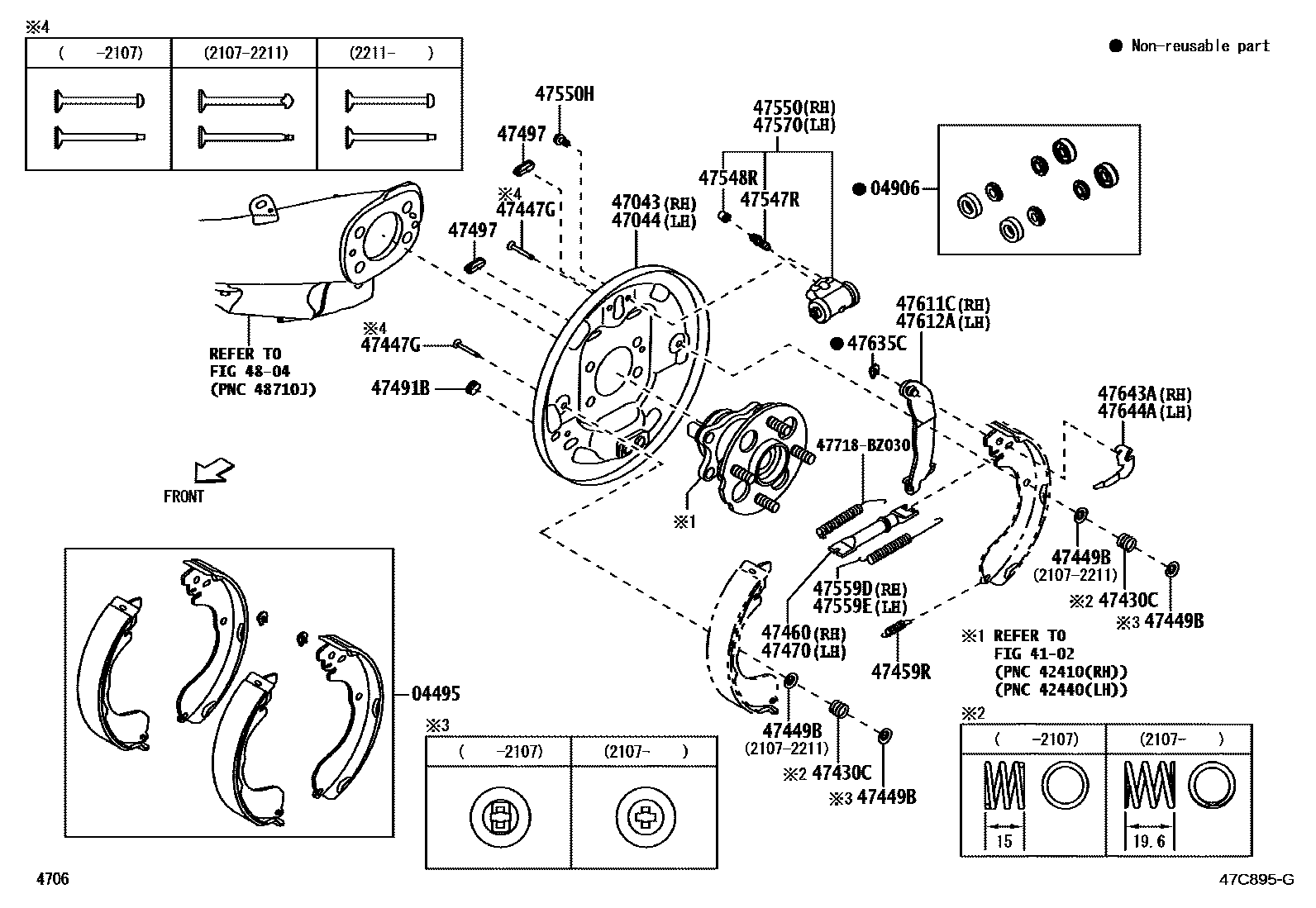

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-BZ180iA25#202104-202406

main04495-BZ181iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202406-202608

04906CUP KIT, REAR WHEEL CYLINDER

main04906-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ170iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ170iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-BZ030iA25#202104-202107

main47446-BZ100iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202107-202608

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-BZ060iA25#202104-202107

main47447-BZ080iA25#202107-202211

main47447-BZ081iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202211-202608

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-BZ030iA25#202104-202107

main47449-BZ080iA25#202107-202608

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47460-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47470-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47491BPLUG, HOLE(FOR REAR BRAKE)

main47419-BZ010iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47419-BZ020iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ110iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47550HBOLT(FOR REAR WHEEL CYLINDER)

main9004A-10131iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-BZ070iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ090iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ080iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

47718BZ030SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ030

27 parts on this diagram · 1 diagram in section
