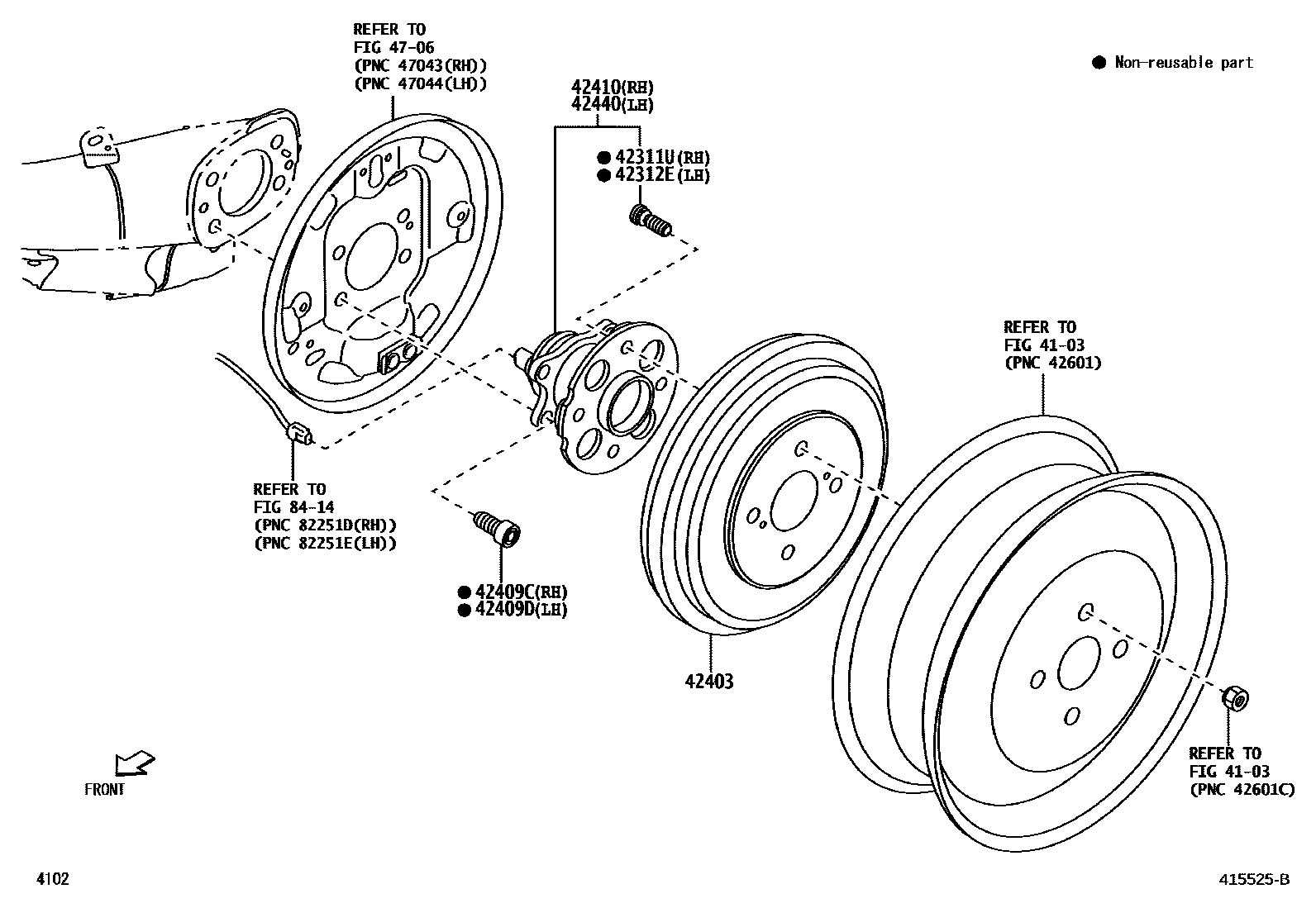

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12056iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12056iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

42403DRUM SUB-ASSY, REAR BRAKE

main42431-BZ150iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01719iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01719iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

W/SENSOR

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-BZ120iA250;A251..5F;A251..L..GCC;A251..CVT..(V,X)202104-202608

W/SENSOR

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

10 parts on this diagram · 1 diagram in section
