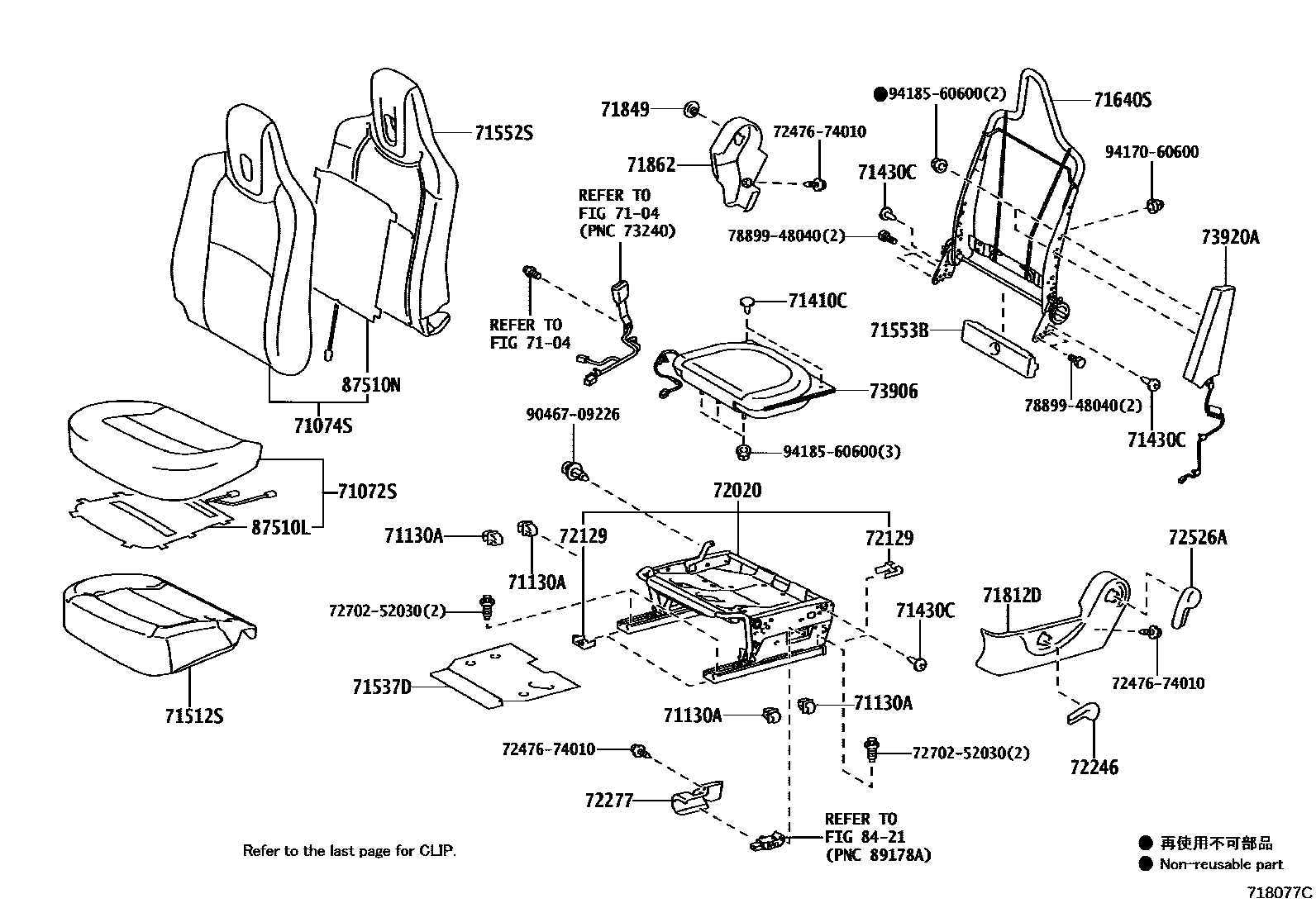

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-74280-A0iKPJ10201209-201212

BLACK/WHITE,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-74080-C0iKPJ10201209-201212

BLACK/WHITE,TRIM2#

71130ACLIP, FRONT SEAT LEG

main90467-12036×8iKPJ10201209

71410CCLIP(FOR FRONT SEAT CUSHION)

main90467-05045-22×4iKPJ10201209-201212

BLACK

71430CCLIP

main90467-08188×6iKPJ10201209

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-74050iKPJ10201209

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-74010iKPJ10201209

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-74070iKPJ10201209

71553BPAD, FRONT SEATBACK, B

main71553-74010×2iKPJ10201209

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-74070iKPJ10201209

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-74040-C0iKPJ10201209-201212

BLACK,TRIM2#

71849CAP, SEAT ADJUSTER COVER, LH

main71848-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-74040-C0iKPJ10201209-201212

BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-74070iKPJ10201209

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-74010×6iKPJ10201209

72246LEVER, SEAT TRACK LOCK OPEN, LH

main72246-74010-C0iKPJ10201209-201212

BLACK,TRIM2#

72277PROTECTOR, SEAT SLIDE POSITION SENSOR,

main72277-74010iKPJ10201209

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72507-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

73906AIRBAG SUB-ASSY, FRONT SEAT, LH

main73905-74070iKPJ10201209

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-74100iKPJ10201209

8421AIR BAG

→ Go to FIG 84-21

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-74120iKPJ10201209

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-74040iKPJ10201209

7247674010SCREW, HORIZONTAL JACK, INNER

main72476-74010

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7889948040BOLT, FRONT SEAT

main78899-48040

9046709226

main90467-09226

9417060600

main94170-60600

9418560600

main94185-60600

30 parts on this diagram · 3 diagrams in section
