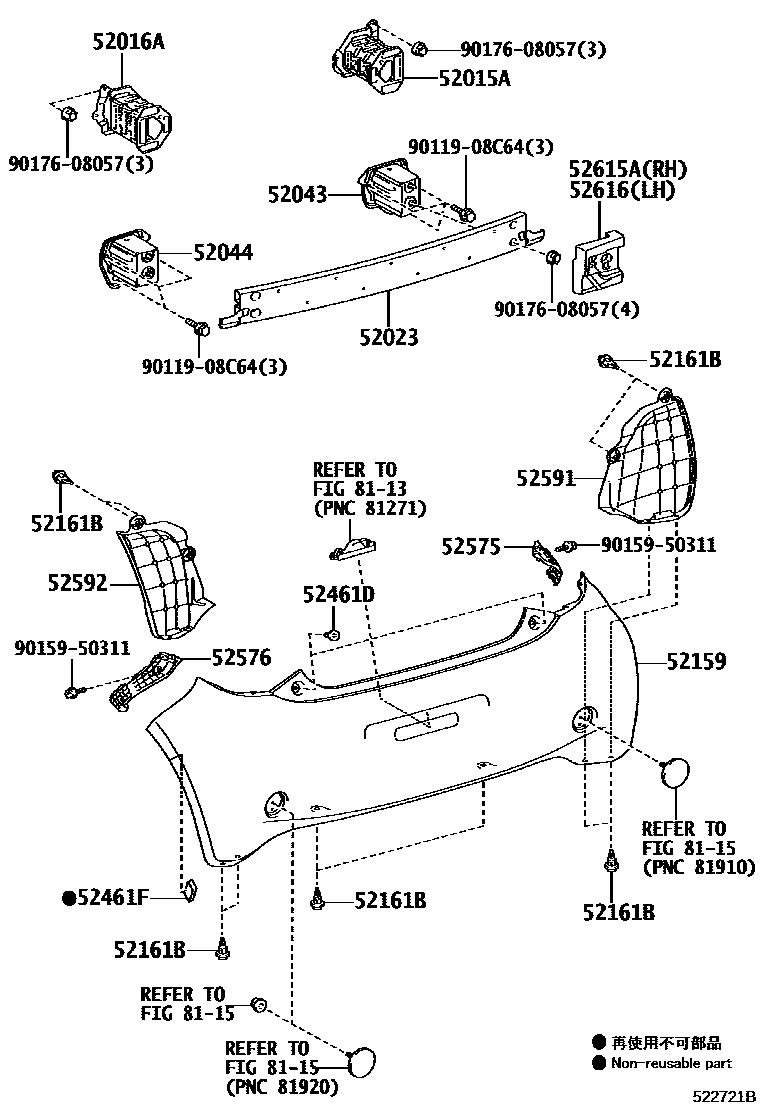

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-74030iKPJ10201209

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-74010iKPJ10201209

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52105-74020iKPJ10201209

52043REINFORCEMENT SUB-ASSY, REAR BUMPER, RH

main52023-74030iKPJ10201209

52044REINFORCEMENT SUB-ASSY, REAR BUMPER, LH

main52024-74020iKPJ10201209

52159COVER, REAR BUMPER

main52159-74903iKPJ10201209-201212

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×10iKPJ10201209

52461DCUSHION, REAR BUMPER

main52461-52020×2iKPJ10201209

52461FPAD, REAR BUMPER

main52461-74050iKPJ10201209

52575RETAINER, REAR BUMPER SIDE, RH

main52575-74012iKPJ10201209

52576RETAINER, REAR BUMPER SIDE, LH

main52576-74012iKPJ10201209

52591SEAL, REAR BUMPER SIDE, RH

main52591-74010iKPJ10201209

52592SEAL, REAR BUMPER SIDE, LH

main52592-74020iKPJ10201209

52615AABSORBER, REAR BUMPER ENERGY, RH

main52615-74010iKPJ10201209

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-74010iKPJ10201209

8113REAR LICENSE PLATE LAMP

→ Go to FIG 81-13

8115REFLEX REFLECTOR

→ Go to FIG 81-15

9011908C64

main90119-08C64

9015950311

main90159-50311

9017608057

main90176-08057

20 parts on this diagram · 1 diagram in section
