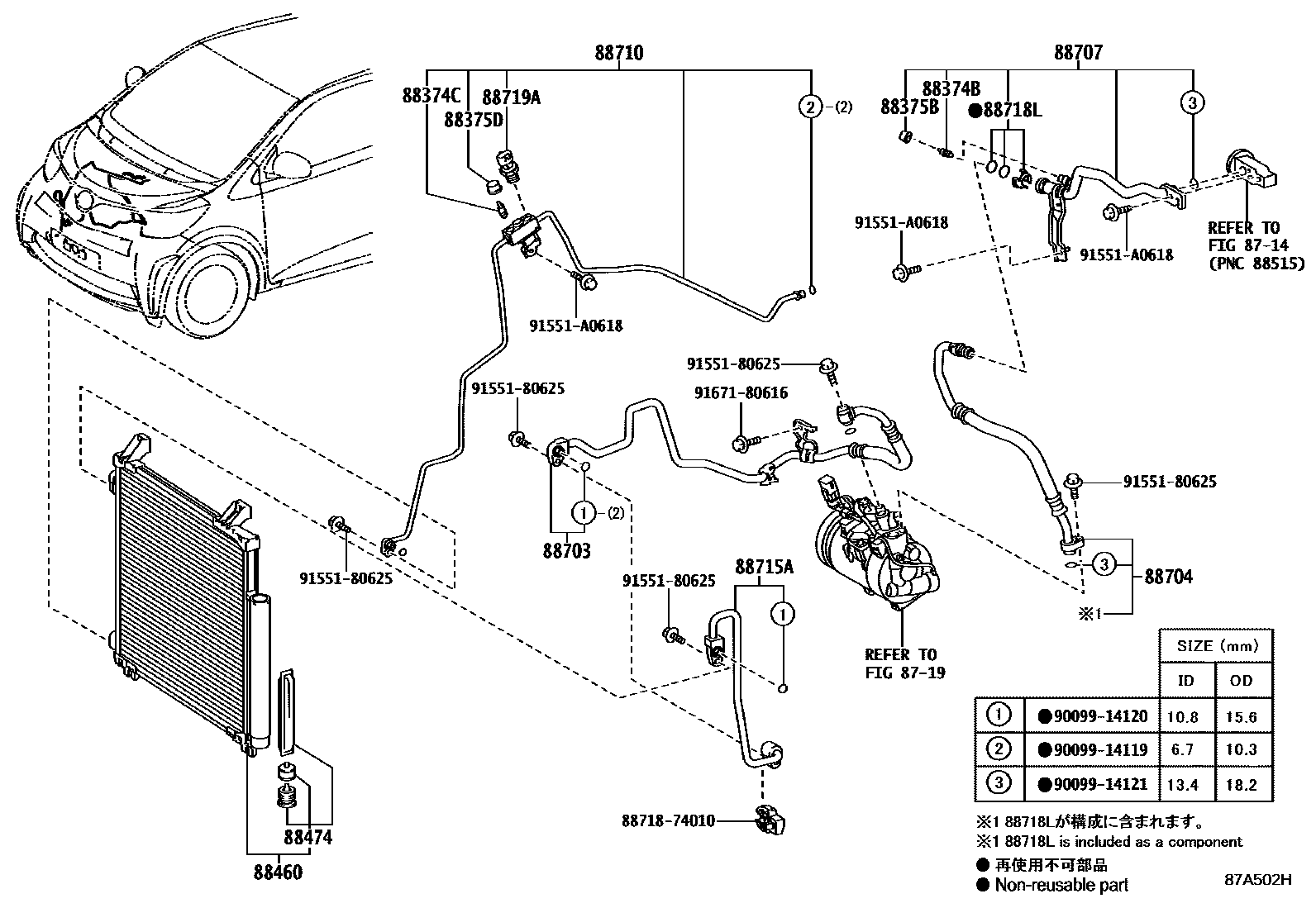

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iNGJ10201107-201506

88374CVALVE, SERVICE, NO.2

main88374-30010iNGJ10201107-201506

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNGJ10201107-201506

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iNGJ10201107-201506

88460CONDENSER ASSY, COOLER

main88460-74010iNGJ10201107-201506

88474DRYER, COOLER

main88474-17010iNGJ10201107-201506

88703HOSE SUB-ASSY, DISCHARGE

main88703-74031iNGJ10201107-201506

88704HOSE SUB-ASSY, SUCTION

main88704-74030iNGJ10201107-201506

88707PIPE SUB-ASSY, SUCTION

main88707-74030iNGJ10201107-201506

88710TUBE ASSY, AIR CONDITIONER

main88710-74030iNGJ10201107-201506

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-74010iNGJ10201107-201506

88718LCLAMP, PIPING

main88718-52260iNGJ10201107-201506

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iNGJ10201107-201506

8871874010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-74010

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180616

main91671-80616

22 parts on this diagram · 1 diagram in section
