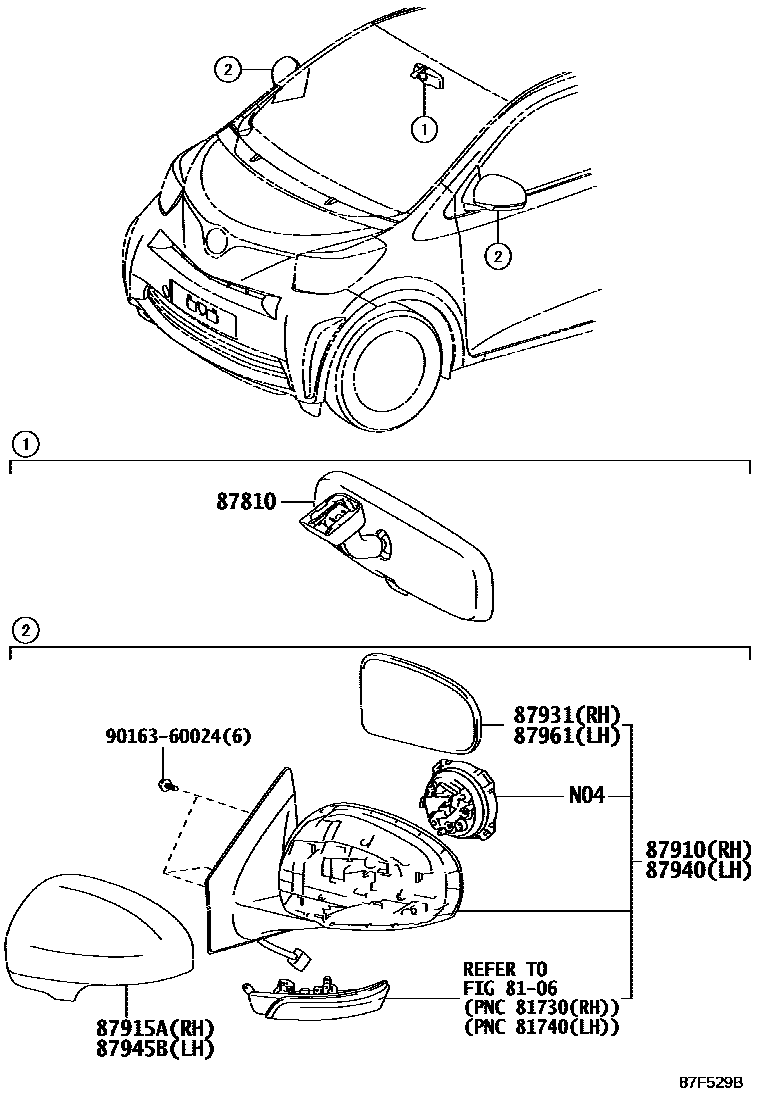

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

87810MIRROR ASSY, INNER REAR VIEW

main87810-52041i201107-201506

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-74090supersedes 87910-74080i201107-201506

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)

87915ACOVER, OUTER MIRROR, RH

main87915-74010-K0i201305-201506

DEEP AMETHYST M.M.,2LT ,9AH

main87915-74010-P0i201107-201506

DK.CHROME METAL,070 ,1F7 ,1G3 ,209 ,3P0 ,4R8 ,4T3 ,8R3 ,9AH

main87915-74010-P1i201305-201307

SPECIAL EDITION,BLUEISH SILVER CS.,1J8

87931OUTER MIRROR, RH

main87931-74090i201305-201506

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)W/HEATER

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-74090supersedes 87940-74080i201107-201506

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)

87945BCOVER, OUTER MIRROR, LH

main87945-74010-K0i201305-201506

DEEP AMETHYST M.M.,2LT ,9AH

main87945-74010-P0i201107-201506

DK.CHROME METAL,070 ,1F7 ,1G3 ,209 ,3P0 ,4R8 ,4T3 ,8R3 ,9AH

main87945-74010-P1i201305-201307

SPECIAL EDITION,BLUEISH SILVER CS.,1J8

87961MIRROR OUTER, LH

main87961-74090supersedes 87961-74080i201107-201506

OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(*CR),W(HEATER)

9016360024

9 parts on this diagram · 1 diagram in section
