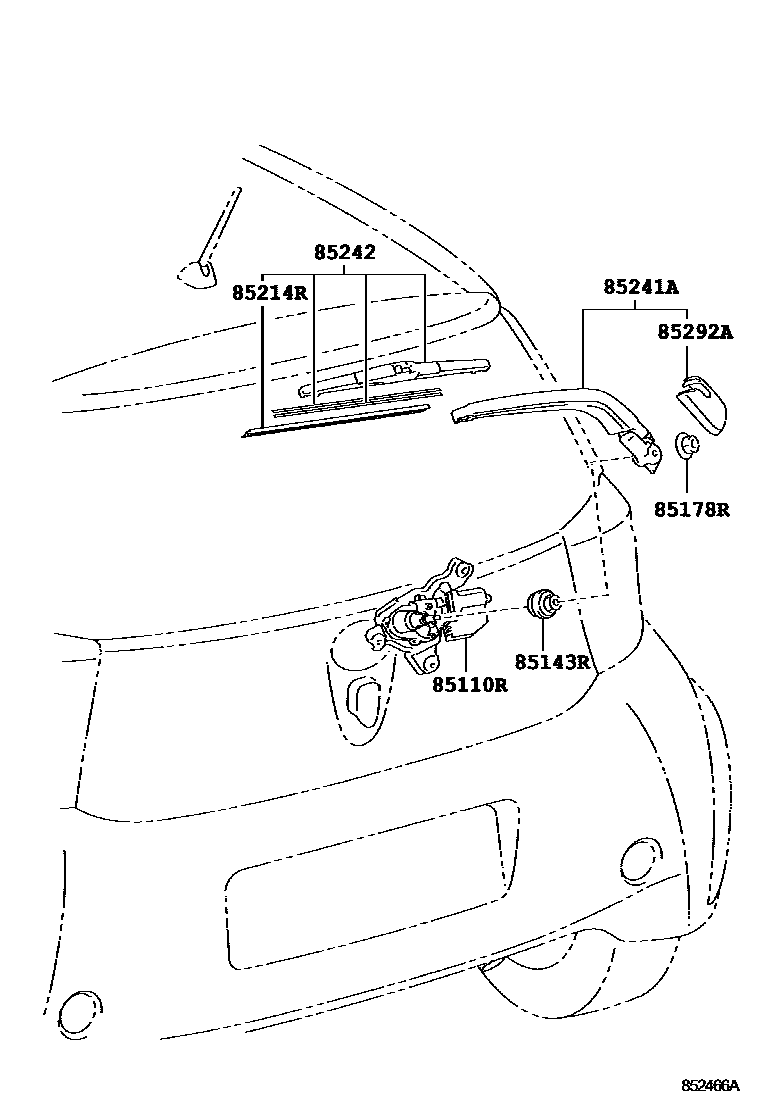

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-74020iNGJ10201107-201506

85143RGROMMET, REAR WIPER MOTOR

main85143-52030iNGJ10201107-201506

85178RNUT (FOR REAR WIPER ARM SETTING)

main94151-80600iNGJ10201107-201506

85214RRUBBER, REAR WIPER

main85214-12310iNGJ10201107-201506

85241AARM, REAR WIPER

main85241-74020iNGJ10201107-201506

85242BLADE, RR WIPER

main85242-12090iNGJ10201107-201506

85292ACAP, REAR WIPER ARM HEAD

main85292-42020iNGJ10201107-201506

7 parts on this diagram · 1 diagram in section
