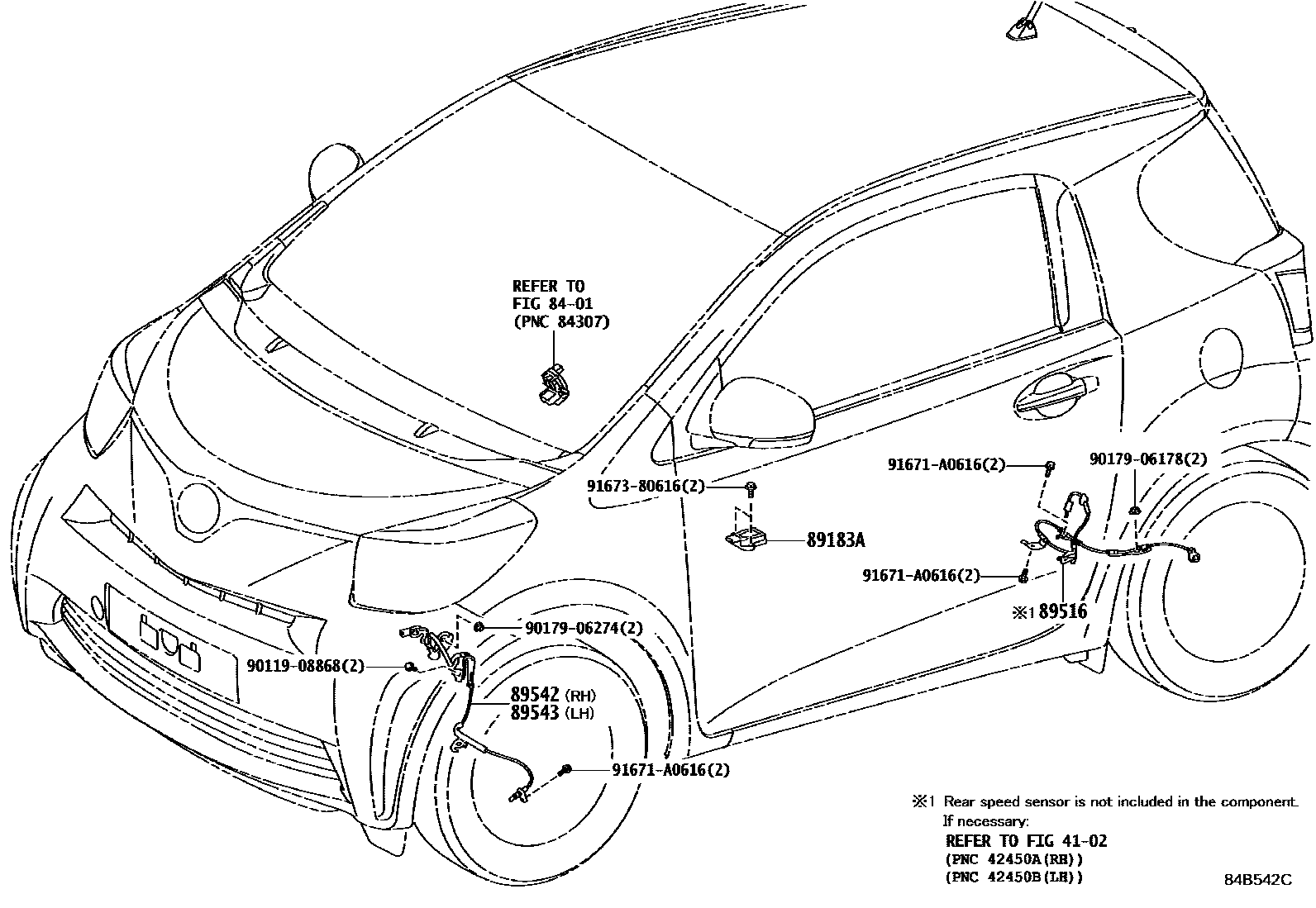

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183ASENSOR, YAWRATE

main89183-48030iNGJ10201107-201506

89516WIRE, SKID CONTROL SENSOR

main89516-74010iNGJ10201107-201506

RH

main89516-74020iNGJ10201107-201506

LH

89542SENSOR, SPEED, FRONT RH

main89542-74010iNGJ10201107-201506

89543SENSOR, SPEED, FRONT LH

main89543-74010iNGJ10201107-201506

9011908868

main90119-08868

9017906178

main90179-06178

9017906274

main90179-06274

91671A0616

main91671-A0616

9167380616

main91673-80616

11 parts on this diagram · 1 diagram in section
