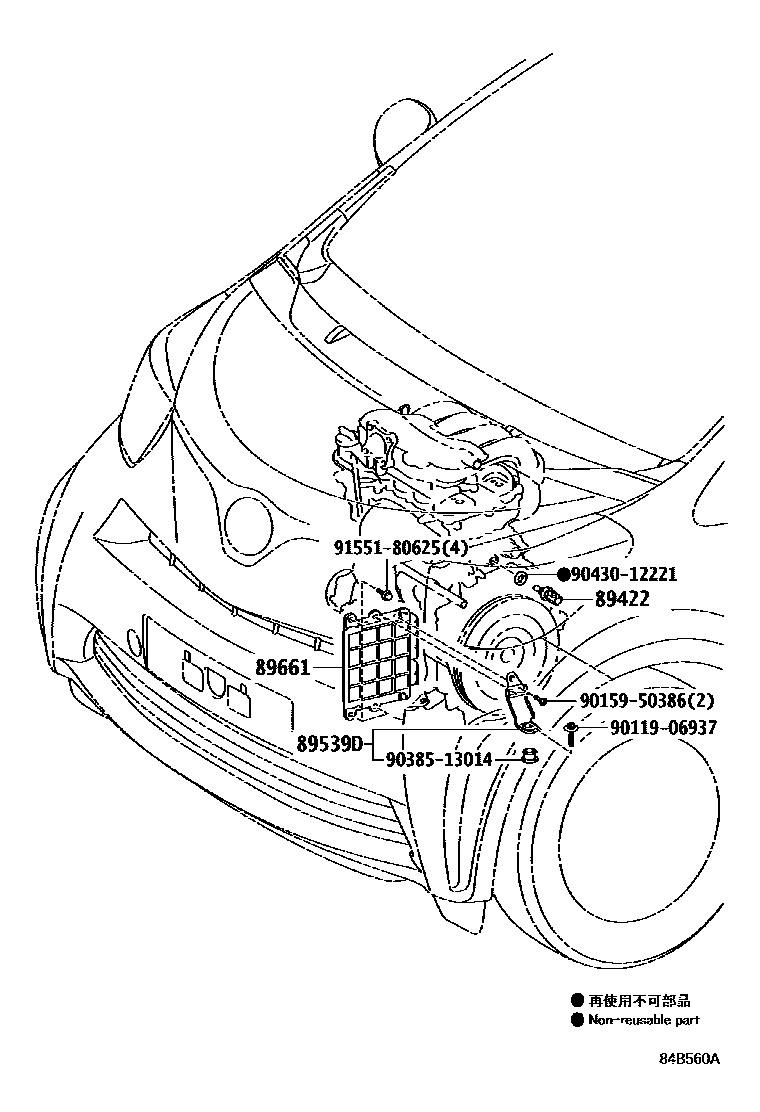

ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNGJ10201107-201506

89539DBRACKET, COMPUTER

main89539-74010iNGJ10201107-201506

89661COMPUTER, ENGINE CONTROL

main89661-74100iNGJ10201107-201207

main89661-74320iNGJ10201207-201408

main89661-74470iNGJ10201408-201506

9011906937

main90119-06937

9015950386

main90159-50386

9038513014

main90385-13014

9043012221

main90430-12221

9155180625

main91551-80625

8 parts on this diagram · 1 diagram in section
