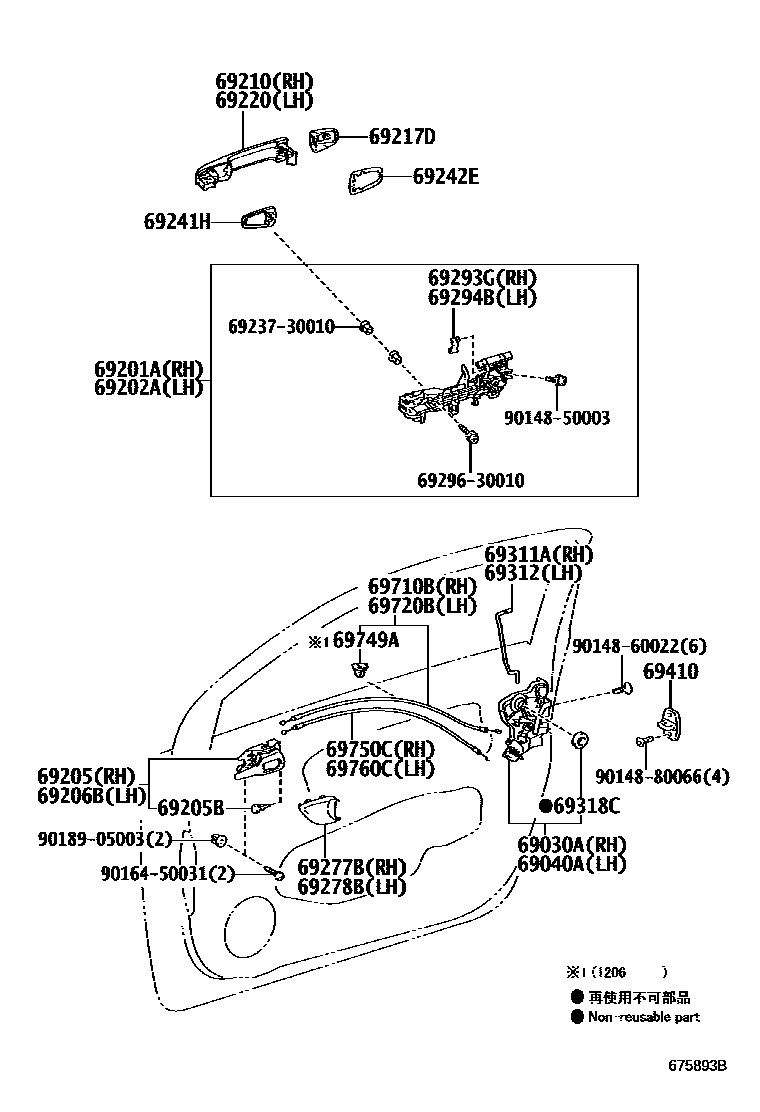

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7 ,2LT
GRAY ME.,1G3
BLACK MC.,209 ,2LR
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
SPECIAL EDITION,BLUEISH SILVER CS.,1J8
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7 ,2LT,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
BLACK MC.,209 ,2LR,DRIVER SIDE
SUPER RED 5,3P0,DRIVER SIDE
BRONZE M.M.,4T3,DRIVER SIDE
ORANGE ME.,4R8,DRIVER SIDE
GRAYISH BLUE ME.,8R3,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
DEEP AMETHYST M.M.,9AH,DRIVER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7 ,2LT,PASSENGER SIDE
GRAY ME.,1G3,PASSENGER SIDE
BLACK MC.,209 ,2LR,PASSENGER SIDE
SUPER RED 5,3P0,PASSENGER SIDE
BRONZE M.M.,4T3,PASSENGER SIDE
ORANGE ME.,4R8,PASSENGER SIDE
GRAYISH BLUE ME.,8R3,PASSENGER SIDE
BLUE ME.,8T7,PASSENGER SIDE
DEEP AMETHYST M.M.,9AH,PASSENGER SIDE
SPECIAL EDITION,BLUEISH SILVER CS.,1J8,DRIVER SIDE
SPECIAL EDITION,BLUEISH SILVER CS.,1J8,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7 ,2LT
GRAY ME.,1G3
BLACK MC.,209 ,2LR
SUPER RED 5,3P0
BRONZE M.M.,4T3
ORANGE ME.,4R8
GRAYISH BLUE ME.,8R3
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
SPECIAL EDITION,BLUEISH SILVER CS.,1J8
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
BLACK,TRIM1#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLACK,TRIM1#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
