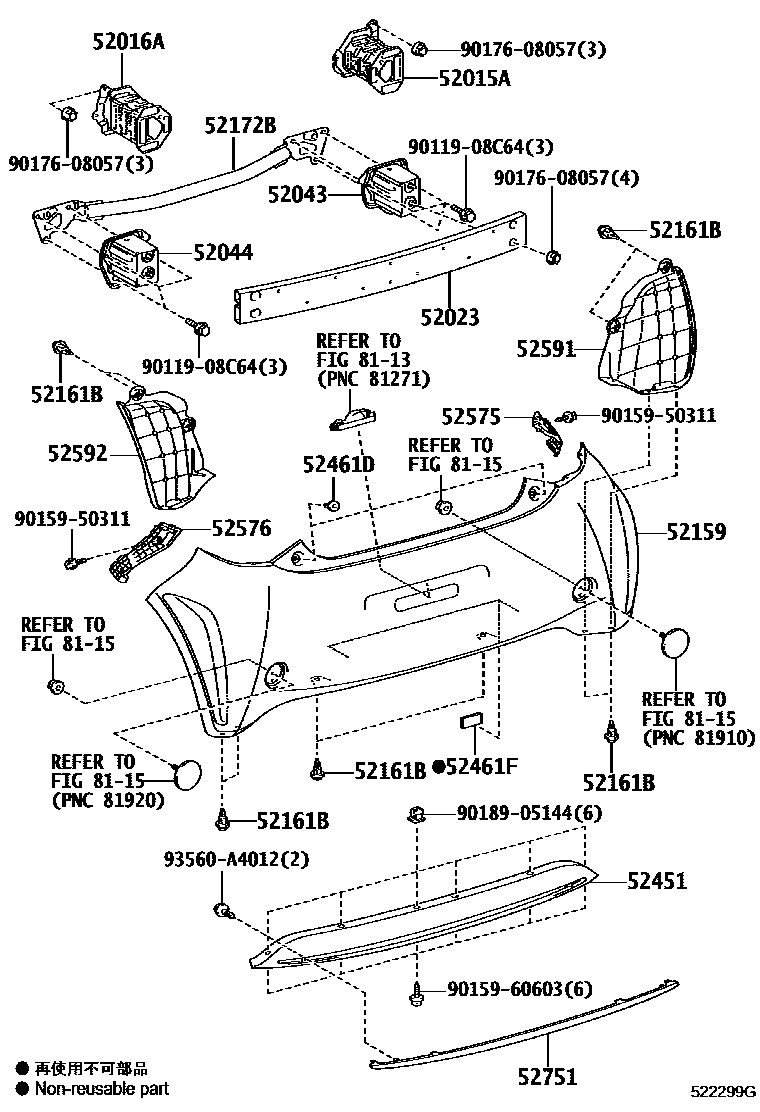

REAR BUMPER & BUMPER STAY
52015AARM SUB-ASSY, REAR BUMPER, RH
52016AARM SUB-ASSY, REAR BUMPER, LH
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52043REINFORCEMENT SUB-ASSY, REAR BUMPER, RH
52044REINFORCEMENT SUB-ASSY, REAR BUMPER, LH
52159COVER, REAR BUMPER
PAINT REQ.
52161BPIECE, REAR BUMPER
52172BREINFORCEMENT, REAR BUMPER, NO.2
52451GUARD, REAR BUMPER
52461DCUSHION, REAR BUMPER
52461FPAD, REAR BUMPER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52751MOULDING, REAR BUMPER
8113REAR LICENSE PLATE LAMP
8115REFLEX REFLECTOR
9011908C64
main90119-08C64
9015950311
main90159-50311
9015960603
main90159-60603
9017608057
main90176-08057
9018905144
main90189-05144
93560A4012
main93560-A4012
24 parts on this diagram · 1 diagram in section
