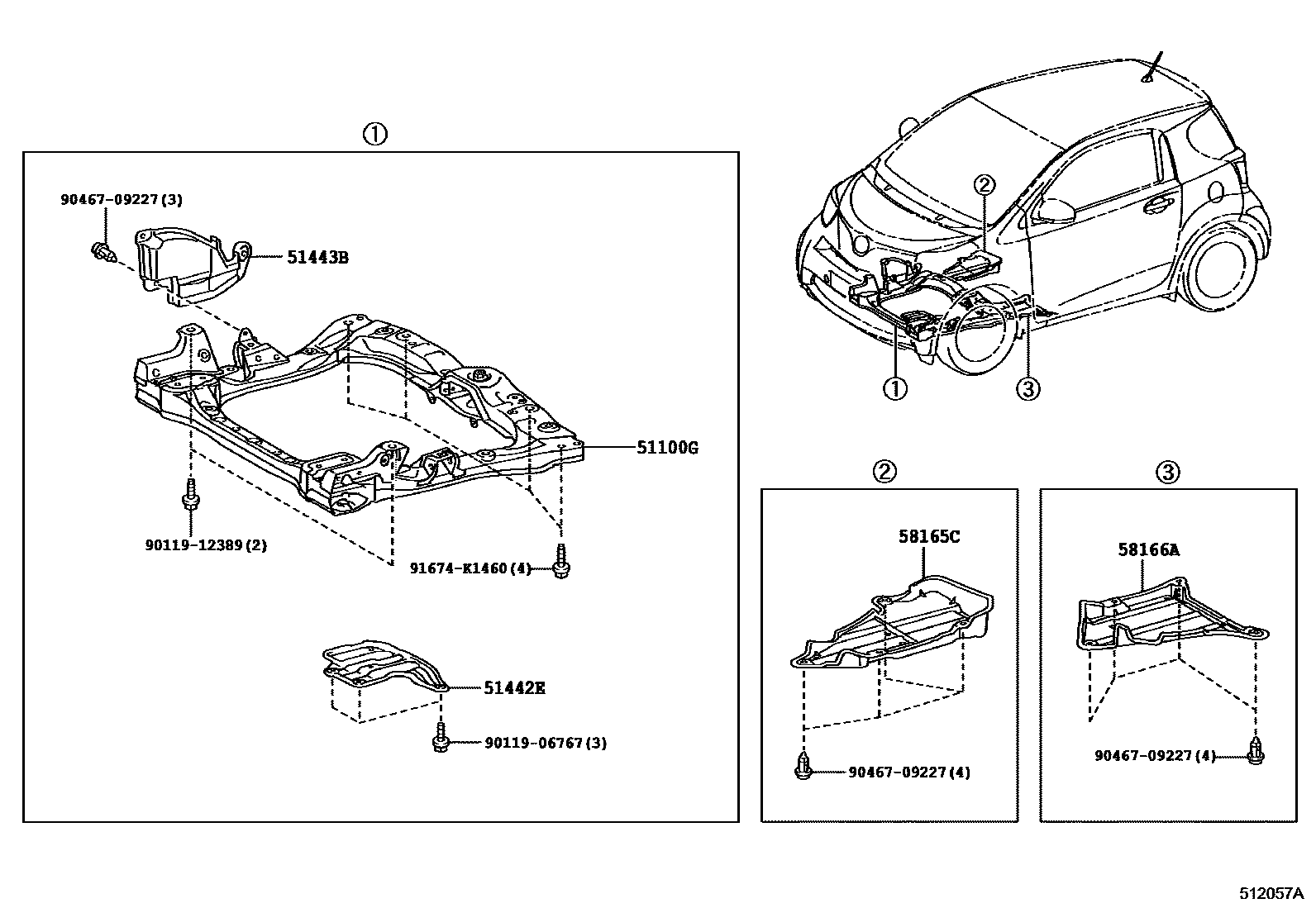

SUSPENSION CROSSMEMBER & UNDER COVER

51100GFRAME ASSY, FRONT

main51100-74021iNGJ10201107-201210

main51100-74022iNGJ10201211-201506

51442ECOVER, ENGINE UNDER, NO.2

main51442-74010iNGJ10201107-201506

51443BCOVER, ENGINE UNDER, NO.3

main51443-74011iNGJ10201107-201506

58165CCOVER, FRONT FLOOR, RH

main58165-74010iNGJ10201107-201506

58166ACOVER, FRONT FLOOR, LH

main58166-74010iNGJ10201107-201506

9011906767

main90119-06767

9011912389

main90119-12389

9046709227

main90467-09227

91674K1460

main91674-K1460

9 parts on this diagram · 1 diagram in section
