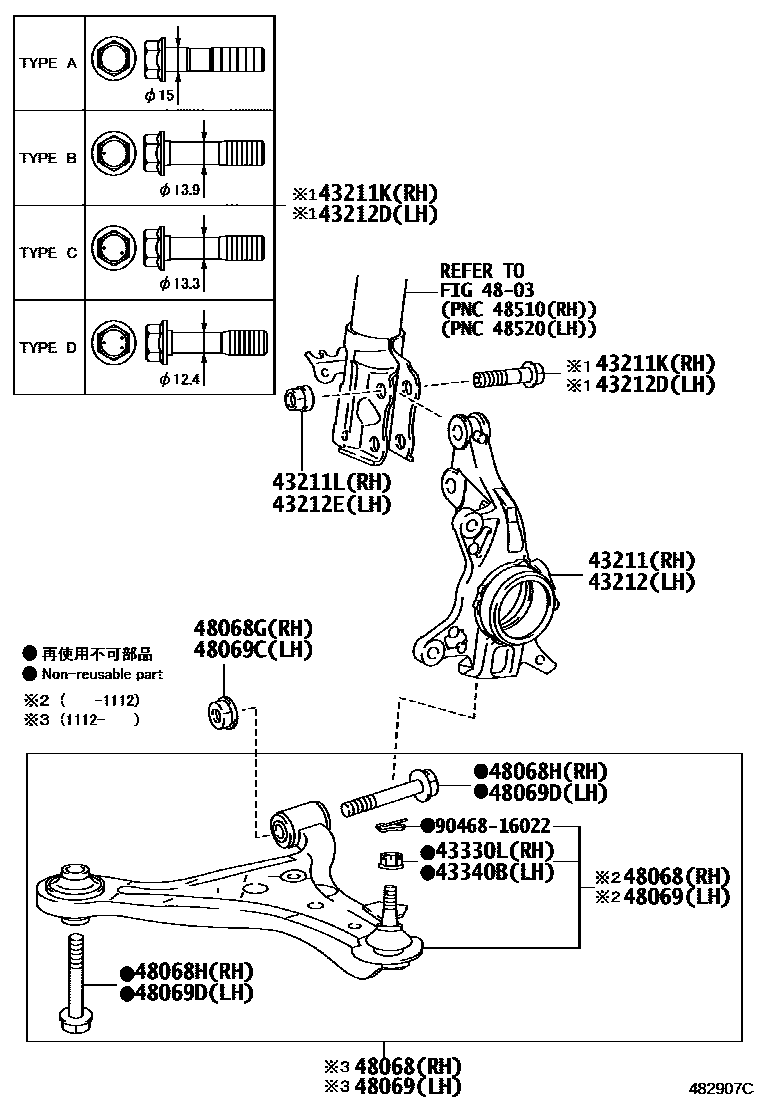

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-74020iNGJ10201107-201506

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001iNGJ10201107-201506

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNGJ10201107-201506

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNGJ10201107-201506

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNGJ10201107-201506

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15006iNGJ10201107-201506

43212KNUCKLE, STEERING, LH

main43212-74020iNGJ10201107-201506

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001iNGJ10201107-201506

OD=15,TYPE A:REFER ILLUST.

main90109-15002iNGJ10201107-201506

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNGJ10201107-201506

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNGJ10201107-201506

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15006iNGJ10201107-201506

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNGJ10201107-201506

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNGJ10201107-201506

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-79016iNGJ10201107-201112

main48068-79017iNGJ10201112-201206

main48068-79018iNGJ10201207-201506

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068iNGJ10201107-201506

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14143iNGJ10201107-201112

main90119-14150iNGJ10201112-201506

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-79016iNGJ10201107-201112

main48069-79017iNGJ10201112-201206

main48069-79018iNGJ10201207-201506

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068iNGJ10201107-201506

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14143iNGJ10201107-201112

main90119-14150iNGJ10201112-201506

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
