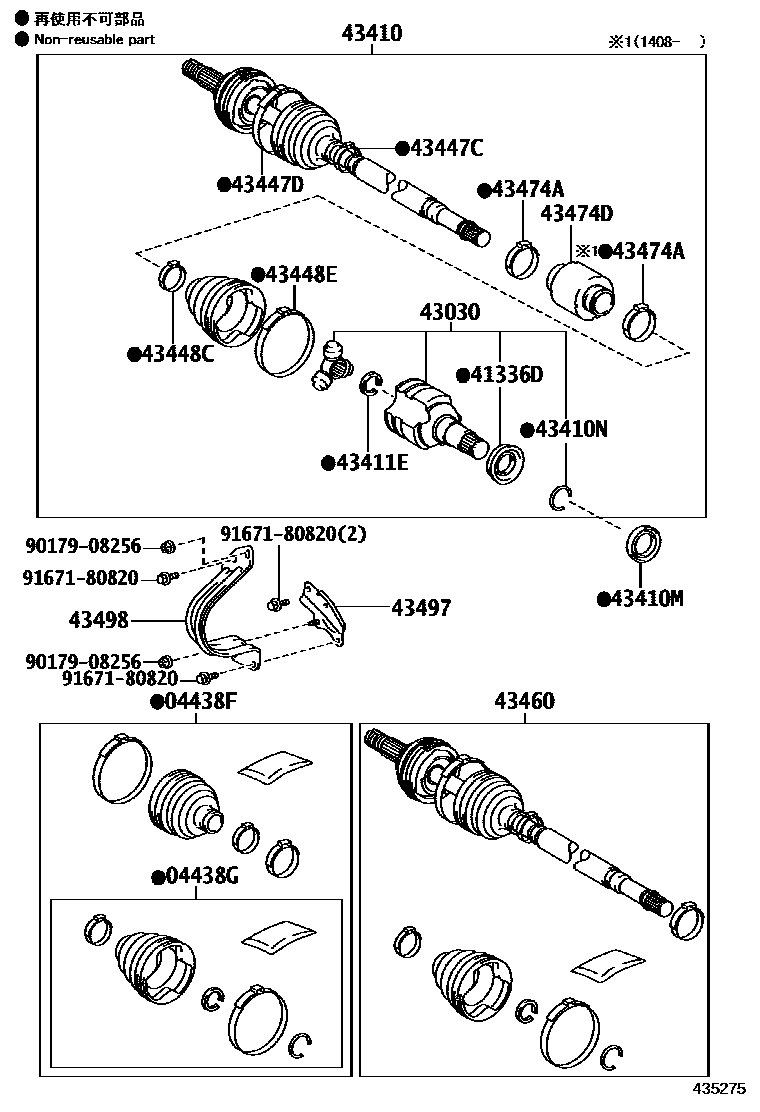

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-74040iNGJ10201107-201408

sub04427-74041

main04427-74041iNGJ10201408-201506

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-74040iNGJ10201107-201506

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNGJ10201107-201506

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-74030iNGJ10201107-201506

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-74060iNGJ10201107-201506

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34023iNGJ10201107-201406

main90311-34048iNGJ10201407-201506

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-26004iNGJ10201107-201506

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-74020iNGJ10201107-201506

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74060iNGJ10201107-201506

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-74070iNGJ10201107-201506

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74090iNGJ10201107-201506

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-74080iNGJ10201107-201506

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-79035iNGJ10201107-201408

sub43460-79036

main43460-79036iNGJ10201408-201506

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNGJ10201107-201506

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-74020iNGJ10201107-201402

sub43474-74030

main43474-74030iNGJ10201408-201506

43497INSULATOR, BEARING BRACKET HEAT

main43497-74010iNGJ10201107-201506

43498INSULATOR, DRIVE SHAFT HEAT

main43498-74010iNGJ10201107-201506

9017908256

main90179-08256

9167180820

main91671-80820

19 parts on this diagram · 2 diagrams in section
