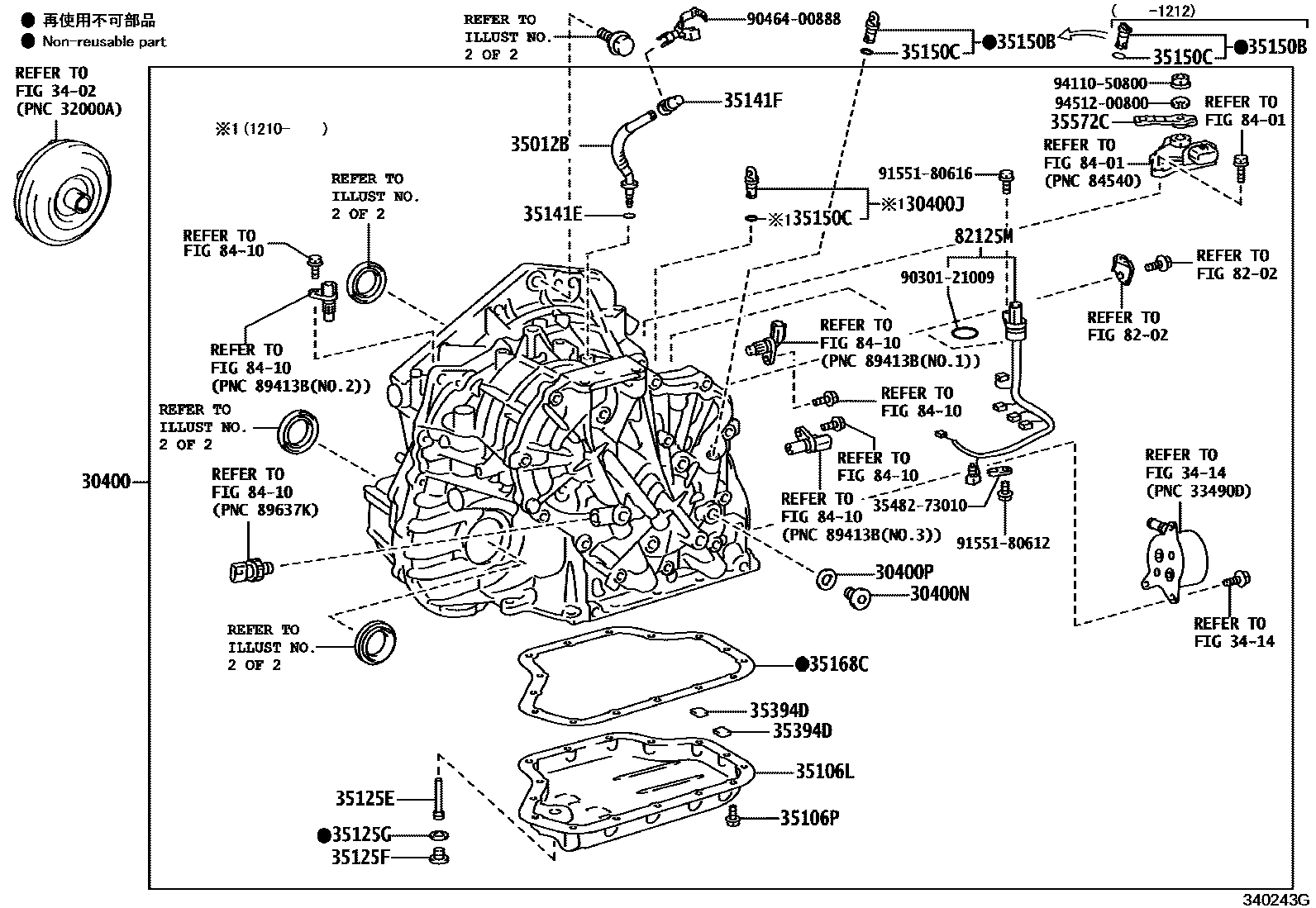

TRANSAXLE ASSY(CVT)

0001 1K41B 0002 1K41B

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-74051iNGJ10201107-201209

K41B

main30400-74150iNGJ10201209-201506

K41B

30400JPLUG, TRANSAXLE HOLE

main35150-48010iNGJ10201210-201506

30400NPLUG, REFILL(CVT)

main90341-18061iNGJ10201107-201209

main90341-18077iNGJ10201209-201506

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNGJ10201107-201506

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

35012BHOSE SUB-ASSY, TRANSMISSION BREATHER

main35012-74010iNGJ10201107-201506

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-74020iNGJ10201107-201506

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×15iNGJ10201107-201506

35125ETUBE, OVERFLOW(CVT)

main35125-74010iNGJ10201107-201506

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNGJ10201107-201506

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNGJ10201107-201506

35141ERING, O(FOR BREATHER PLUG)

main90301-06010iNGJ10201107-201506

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03149iNGJ10201107-201506

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iNGJ10201107-201212

main35150-48010iNGJ10201212-201506

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNGJ10201107-201210

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-74010iNGJ10201107-201506

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010×2iNGJ10201107-201506

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-74010iNGJ10201107-201506

8202WIRING & CLAMP

→ Go to FIG 82-02

82125MWIRE, TRANSMISSION

main82125-74010iNGJ10201107-201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

3548273010VALVE, GOVERNOR

main35482-73010

9030121009

main90301-21009

9046400888

main90464-00888

9155180612

main91551-80612

9155180616

main91551-80616

9411050800

main94110-50800

9451200800

main94512-00800

30 parts on this diagram · 2 diagrams in section
