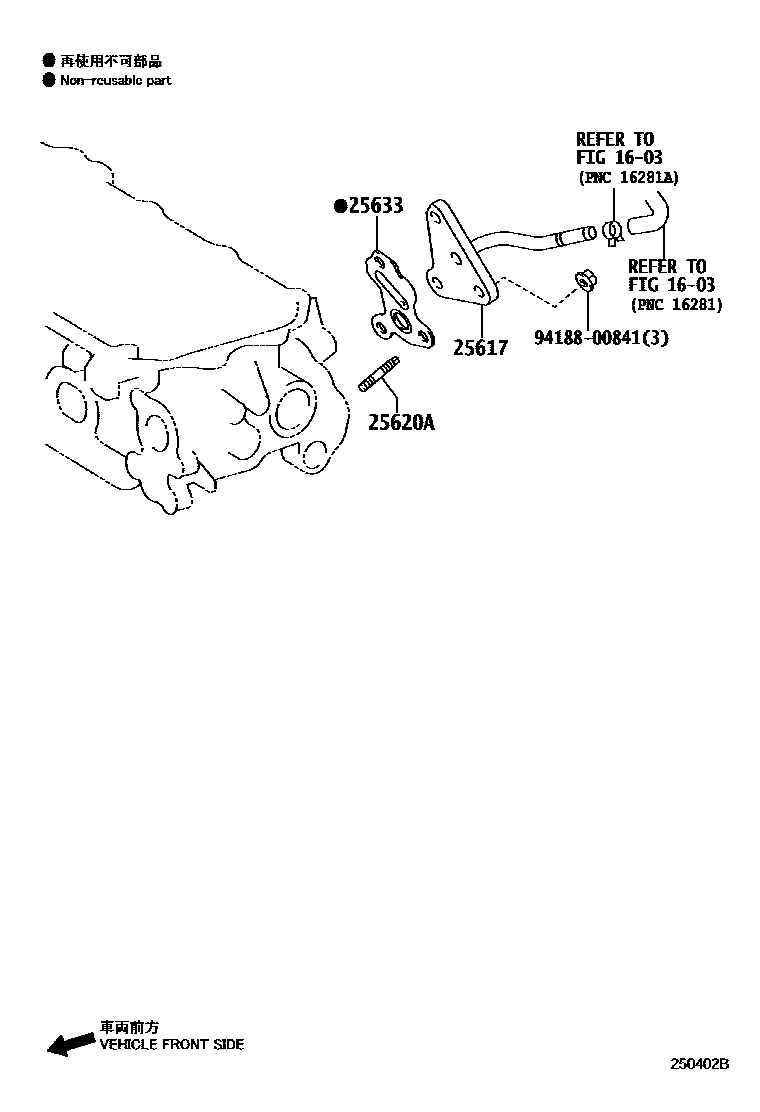

EXHAUST GAS RECIRCULATION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

25617PLATE, EGR HOLE COVER

main25617-47010i1NRFE..NGJ10201107-201506

25620ABOLT, STUD(FOR EGR VALVE)

main90126-08063×3i1NRFE..NGJ10201107-201506

25633GASKET, EGR VALVE

main25633-47010i1NRFE..NGJ10201107-201506

9418800841

main94188-00841

5 parts on this diagram · 1 diagram in section
