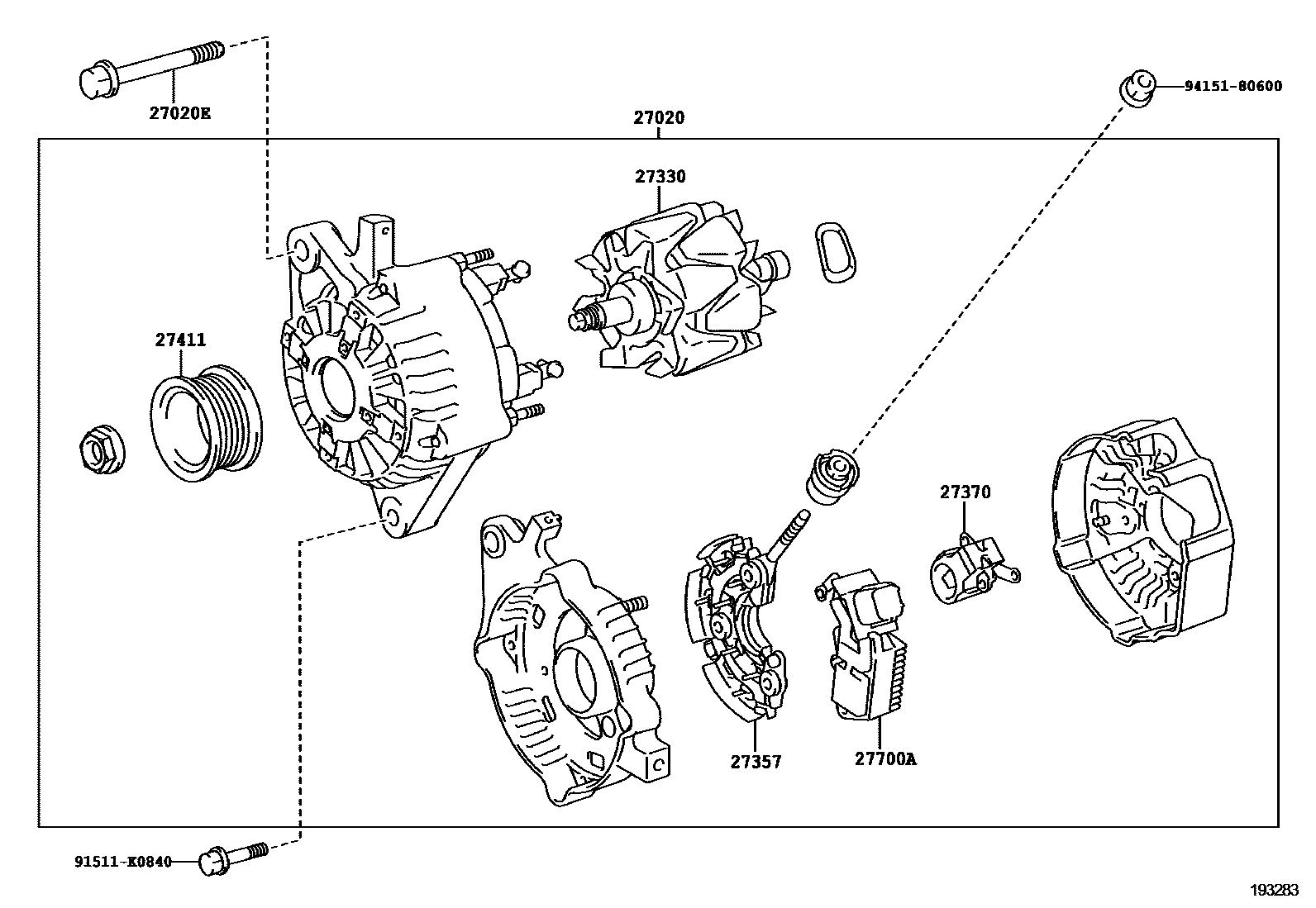

ALTERNATOR

0001 112V 80A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-47090supersedes 27060-47060i1NRFE..NGJ10201107-201205

12V 100A,COLD AREA SPEC(FOR NORTH AMERICA)

main27060-47240supersedes 27060-47060i1NRFE..NGJ10201206-201506

12V 100A,COLD AREA SPEC(FOR NORTH AMERICA)

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1NRFE..NGJ10201107-201506

27330ROTOR ASSY, ALTERNATOR

main27330-30070supersedes 27330-30130i1NRFE..NGJ10201107-201506

COLD AREA SPEC(FOR NORTH AMERICA)

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22200i1NRFE..NGJ10201107-201506

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220supersedes 27370-23120i1NRFE..NGJ10201107-201506

COLD AREA SPEC(FOR NORTH AMERICA)

27411PULLEY, ALTERNATOR

main27411-47160i1NRFE..NGJ10201107-201506

27700AREGULATOR ASSY, GENERATOR

main27700-21050i1NRFE..NGJ10201107-201506

91511K0840

main91511-K0840

9415180600

main94151-80600

9 parts on this diagram · 2 diagrams in section
