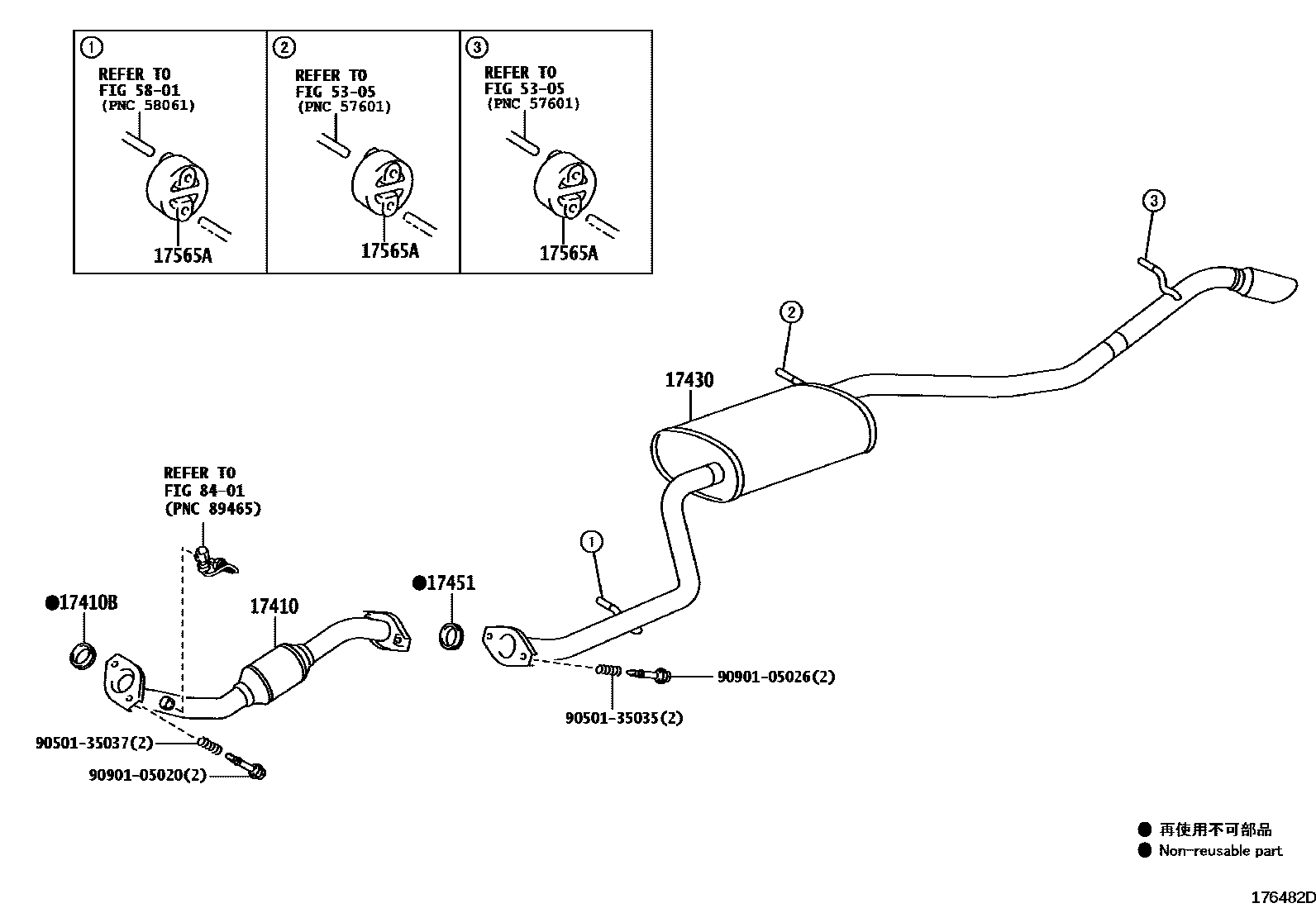

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-47200i1NRFE..NGJ10201107-201506

17410BGASKET, EXHAUST PIPE

main17451-21080i1NRFE..NGJ10201107-201507

17430PIPE ASSY, EXHAUST, TAIL

main17430-47130i1NRFE..NGJ10201107-201506

17451GASKET, EXHAUST PIPE

main17451-23042i1NRFE..NGJ10201107-201507

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-47010×3i1NRFE..NGJ10201107-201507

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
