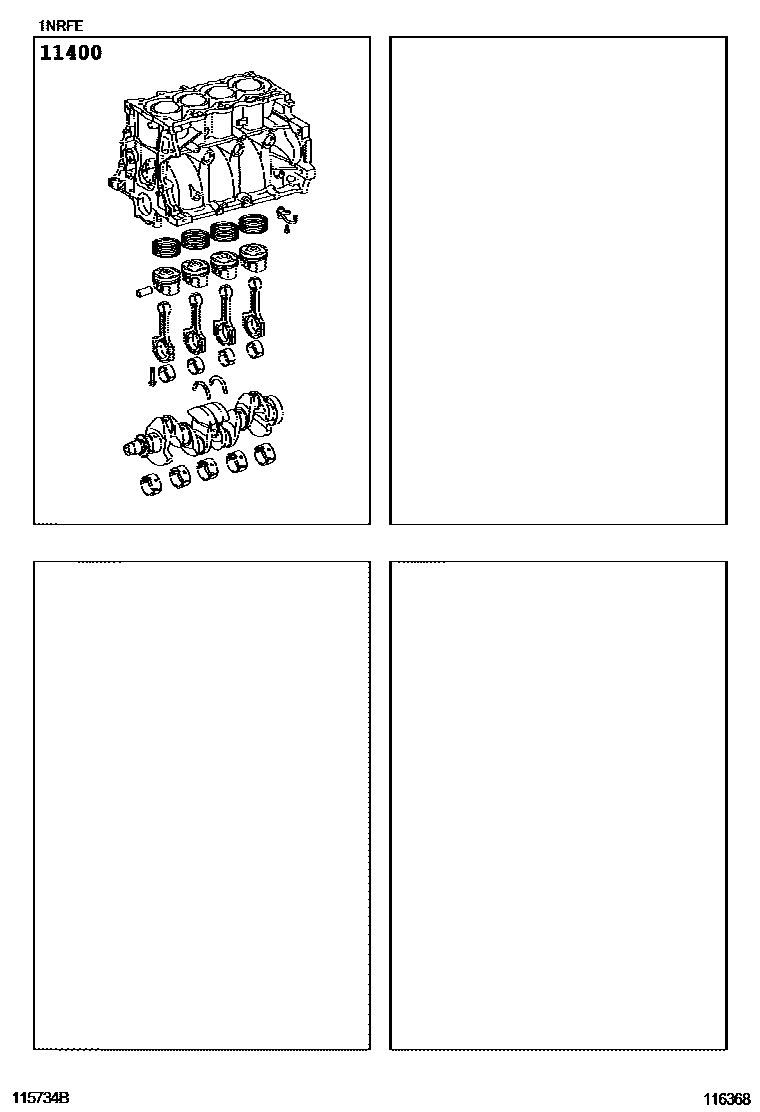

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-47030i201107-201301

main11400-47031i201301-201408

main11400-47170i201408-201506

1 parts on this diagram · 1 diagram in section
