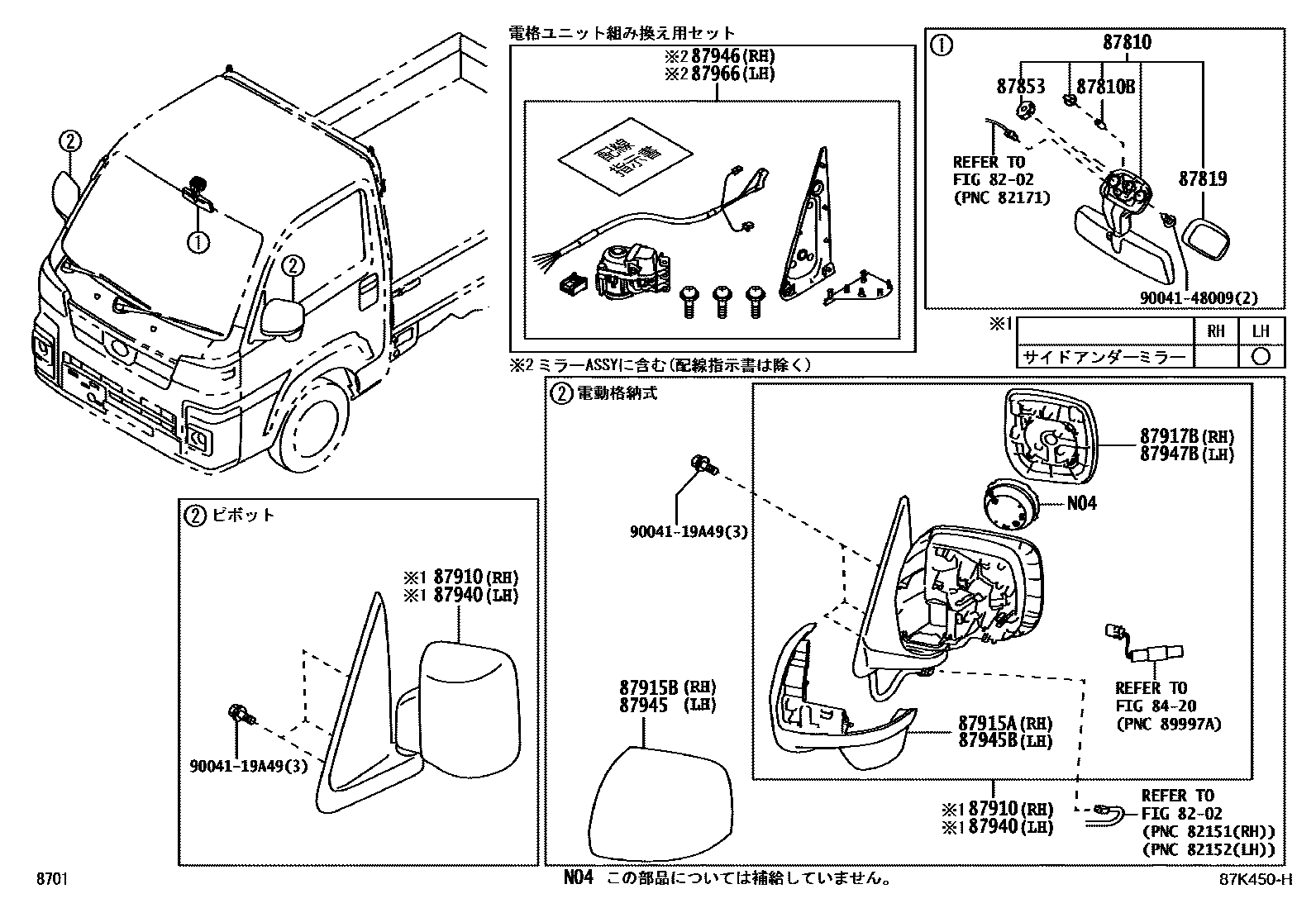

MIRROR

8202WIRING & CLAMP

→ Go to FIG 82-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

87810MIRROR ASSY, INNER REAR VIEW

main87810-B5040-E0iS500,510202112

-

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90049-51157iS500,510202112

87819LENS, INNER RR VIEW MIRROR ROOM LAMP

main87834-B5010iS500,510202112

87853BASE, INNER REAR VIEW MIRROR

main87852-B5010×2iS500,510202112

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-B5250supersedes 87910-B5270iS500,510..EXT; S500,510..STD202112

main87910-B5280-C0iS500,510..STD..PS1202112

87915ACOVER, OUTER MIRROR, RH

main8791B-B5010iS500,510..EXT; S500,510..STD202112

87915BCOVER, OUTER MIRROR, LOWER RH

main87915-B5060-C0iS500,510..EXT; S500,510..STD202112

87917BMIRROR, OUTER REAR VIEW, RH

main87917-B5060iS500,510..EXT; S500,510..STD202112

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-B5270supersedes 87940-B5290iS500,510..EXT; S500,510..STD202112

main87940-B5300-C0iS500,510..STD..PS1202112

87945COVER, OUTER MIRROR, LH

main87945-B5060-C0iS500,510..EXT; S500,510..STD202112

87945BCOVER, OUTER MIRROR, LH

main8794A-B5010iS500,510..EXT; S500,510..STD202112

87946RETRACTOR, OUTER MIRROR, RH

main87946-B5050iS500,510..EXT; S500,510..STD202112

87947BMIRROR, OUTER REAR VIEW, LH

main87947-B5070iS500,510..EXT; S500,510..STD202112

87966RETRACTOR, OUTER MIRROR, LH

main87966-B5050iS500,510..EXT; S500,510..STD202112

9004119A49

main90041-19A49

9004148009

main90041-48009

18 parts on this diagram · 1 diagram in section
