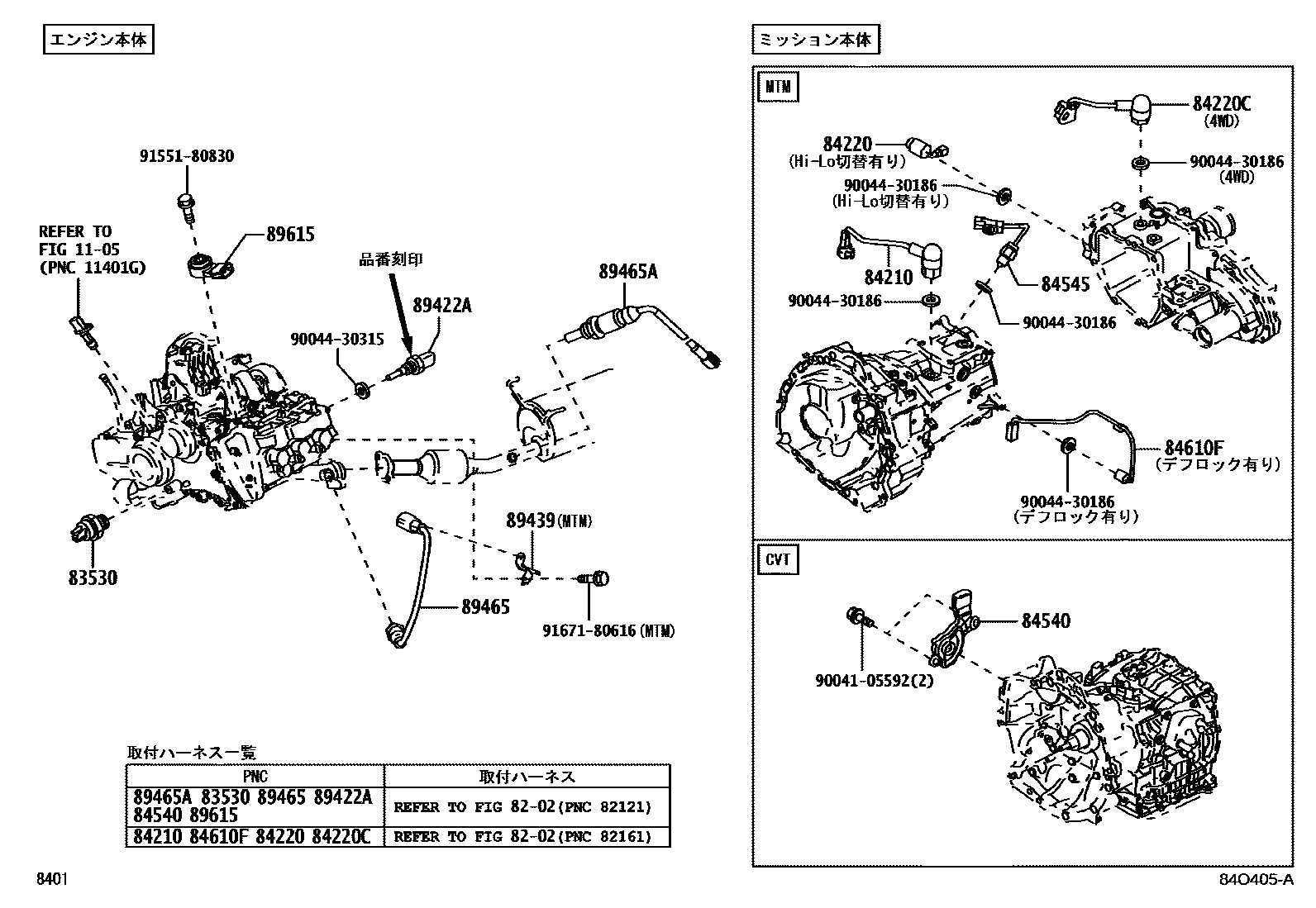

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 0003 1������������ NO.1 0004 1������������ NO.2 0005 1������������ NO.3 0006 1��� 0007 1������� 0008 1�����

1105CYLINDER BLOCK

→ Go to FIG 11-05

8202WIRING & CLAMP

→ Go to FIG 82-02

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main89630-B5010iS500,510202112

84210SWITCH ASSY, BACK-UP LAMP

main84210-B4010iS500,510..5MT202112

84220SWITCH ASSY, TRANSFER LEVER SELECT

main84220-B5020iS510..EXT..5MT; S510..STD..5MT202112

84220CSWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-B5010iS510..5MT202112

84540SWITCH ASSY, NEUTRAL START

main84540-B5030iS500,510..CVT202112

84545SWITCH, NEUTRAL POSITION

main84540-B5011iS500,510..5MT202112

84610FSWITCH ASSY, TRANSMISSION SHIFT

main84610-B5020iS510..EXT..5MT; S510..STD..5MT202112

89422ASENSOR, WATER TEMPERATURE

main89422-33030iS500,510202112

89439BRACKET, SENSOR

main89439-B5080iS500,510..5MT202112

89465SENSOR, OXYGEN

main89465-B5150iS500,510202112

89465ASENSOR, OXYGEN NO.2

main89465-B5160iS500,510202112

89615SENSOR, KNOCK CONTROL

main89615-20090iS500,510202112

9004105592

main90041-05592

9004430186

main90044-30186

9004430315

main90044-30315

9155180830

main91551-80830

9167180616

main91671-80616

19 parts on this diagram · 8 diagrams in section
