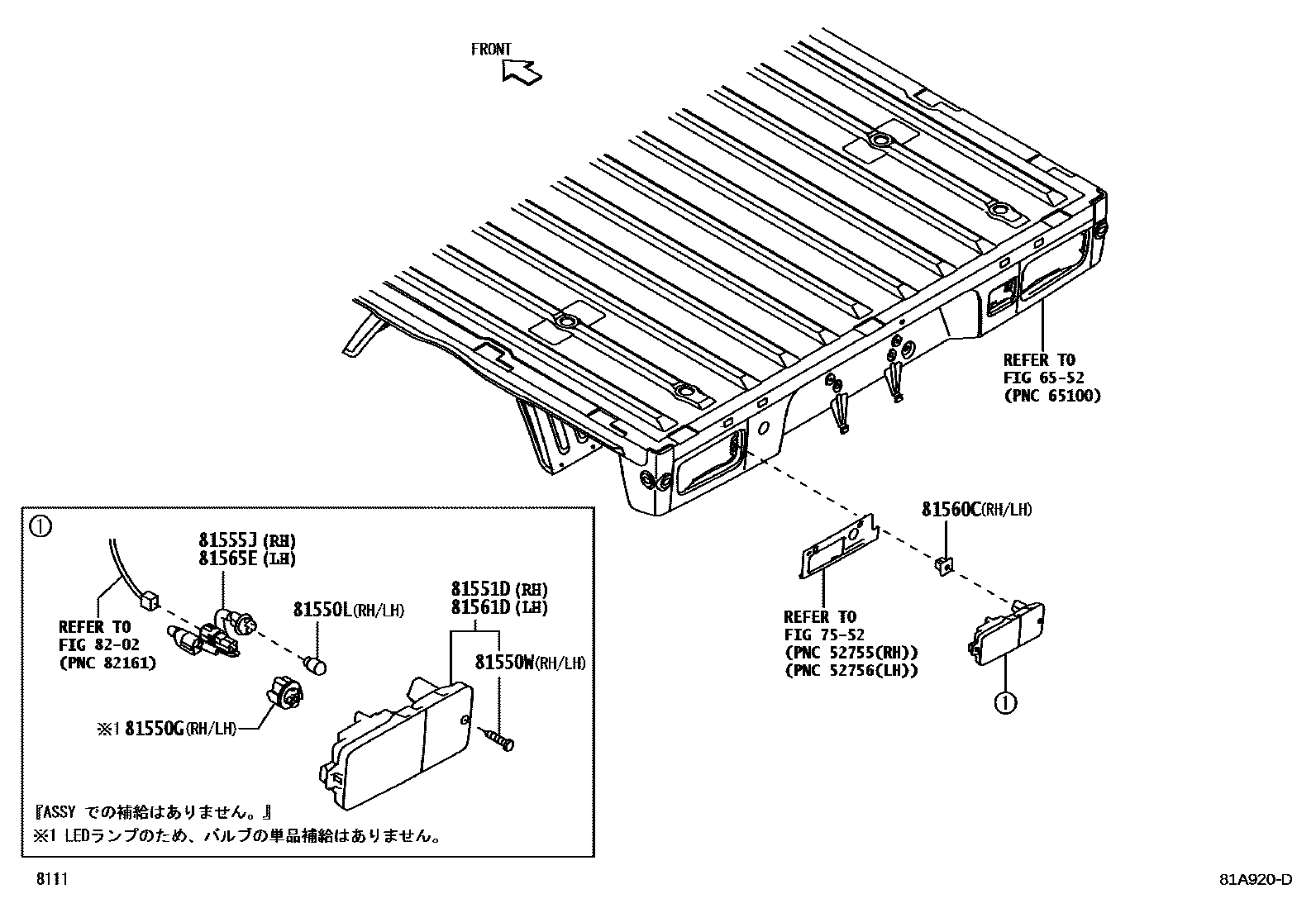

REAR COMBINATION LAMP

6552REAR BODY FLOOR & FENDER

→ Go to FIG 65-52

7552MOULDING

→ Go to FIG 75-52

81550GSOCKET, TAILLAMP

main81945-B5020×2iS500,510202112-202308

main81945-B5021×2iS500,510202309

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059×2iS500,510202112

81550WSCREW(FOR RR COMBINATION LAMP)

main93540-65025×2iS500,510202112

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B5090iS500,510202112

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-B5050iS500,510202112

81560CGROMMET

main90044-80409×2iS500,510202112

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B5090iS500,510202112

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-B5050iS500,510202112

8202WIRING & CLAMP

→ Go to FIG 82-02

11 parts on this diagram · 1 diagram in section
