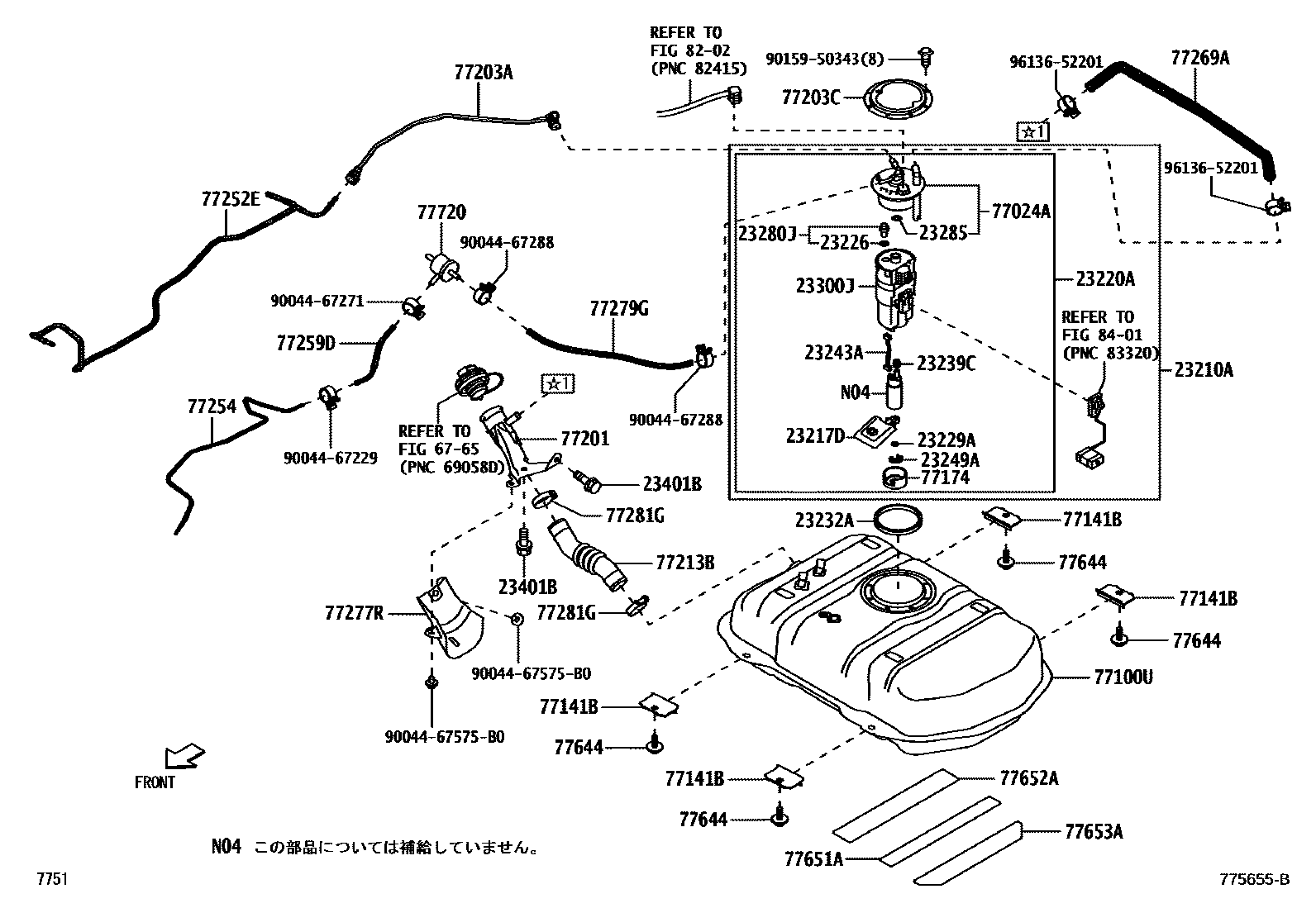

FUEL TANK & TUBE
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
23217DFILTER, FUEL PUMP
23220APUMP ASSY, FUEL W/FILTER
23226RING, O(FOR FUEL PUMP)
23229ACLIP(FOR FUEL PUMP FILTER)
23232AGASKET, FUEL PUMP
23239CSEAL, FUEL PUMP FILTER
23243AWIRE, FUEL PUMP MOTOR
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23285RING, O
23300JFILTER ASSY, FUEL
23401BBOLT
6765LOCK CYLINDER SET
77024APLATE SUB-ASSY, FUEL SUCTION
77100UTANK SUB-ASSY, FUEL
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77252ETUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN)
77254TUBE, FUEL EMISSION, NO.1
77259DHOSE, FUEL, NO.1
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77279GHOSE, FUEL, NO.2
77281GCLAMP, FUEL HOSE
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77653ACUSHION, FUEL TANK, NO.3
77720VALVE SUB-ASSY, SAFETY
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9004467229
main90044-67229
9004467271
main90044-67271
9004467288
main90044-67288
9004467575B0
main90044-67575B0
9015950343
main90159-50343
9613652201
main96136-52201
42 parts on this diagram · 3 diagrams in section
