Toyota 897110 — SEAT BELT

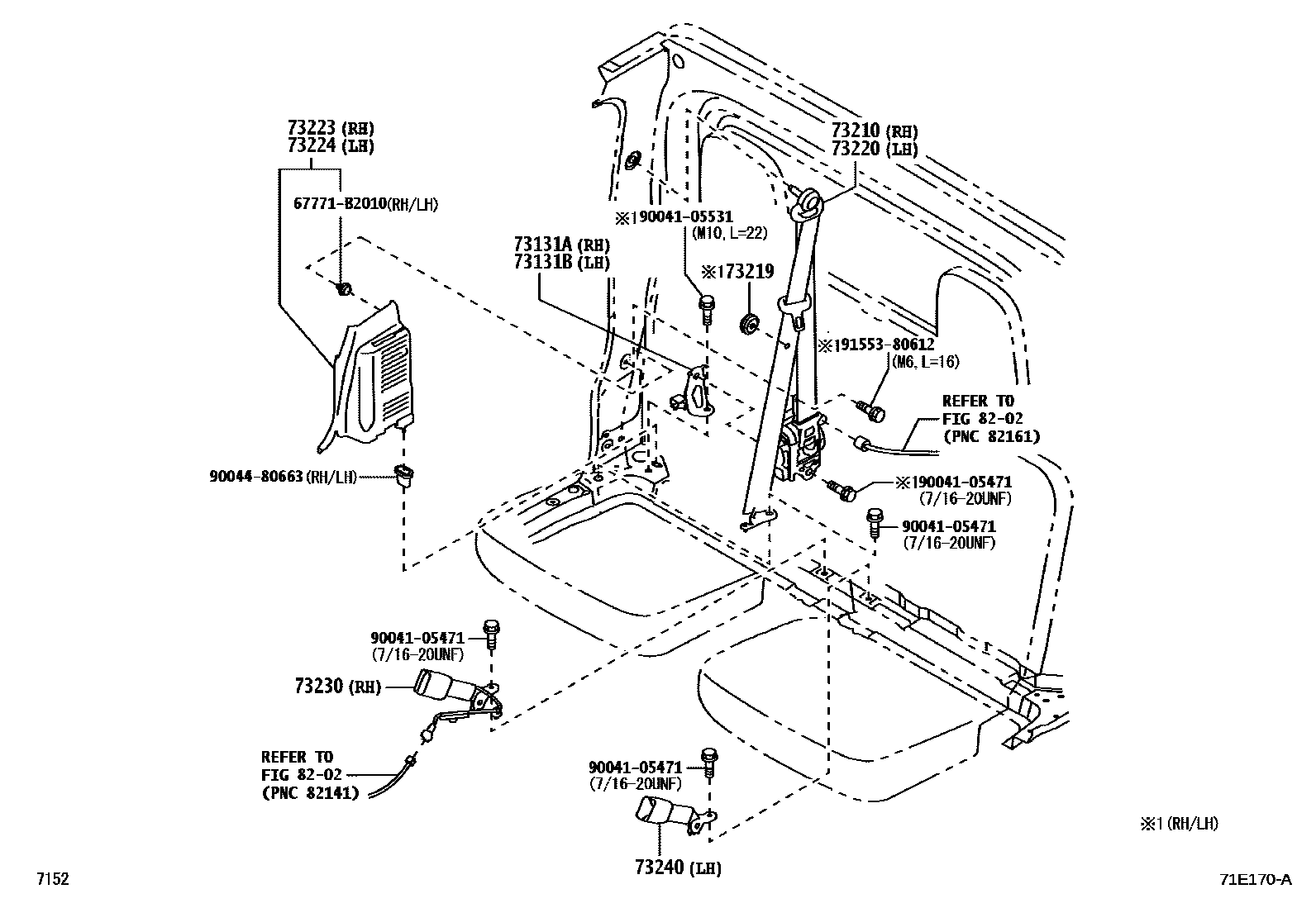

Parts diagram
73131ABRACKET, SEAT BELT
73131BBRACKET, SEAT BELT
73210BELT ASSY, FRONT SEAT OUTER, RH
73210-B5170
73210-B5180
73219STOPPER, TONGUE PLATE
73690-B1010
73690-B1020
73690-87401
73220BELT ASSY, FRONT SEAT OUTER, LH
73220-B5130
73220-B5150
73223COVER, SEAT BELT RETRACTOR
73223-B5120
73224COVER, FRONT SEAT BELT RETRACTOR, LH
73224-B5100
73230BELT ASSY, FRONT SEAT INNER, RH
73230-B5181
73240BELT ASSY, FRONT SEAT INNER, LH
73240-B5030
8202WIRING & CLAMP
→ Go to FIG 82-02
67771B2010WEATHERSTRIP, BACK DOOR TRIM, RH
67771-B2010
9004105471
90041-05471
9004105531
90041-05531
9004480663
90044-80663
9155380612
91553-80612

15 parts on this diagram · 1 diagram in section

SEAT BELT for Toyota 897110

This section contains 15 genuine Toyota parts for the SEAT BELT system of the Toyota 897110. Key components include: BRACKET, SEAT BELT, BELT ASSY, FRONT SEAT OUTER, RH, STOPPER, TONGUE PLATE, BELT ASSY, FRONT SEAT OUTER, LH.
