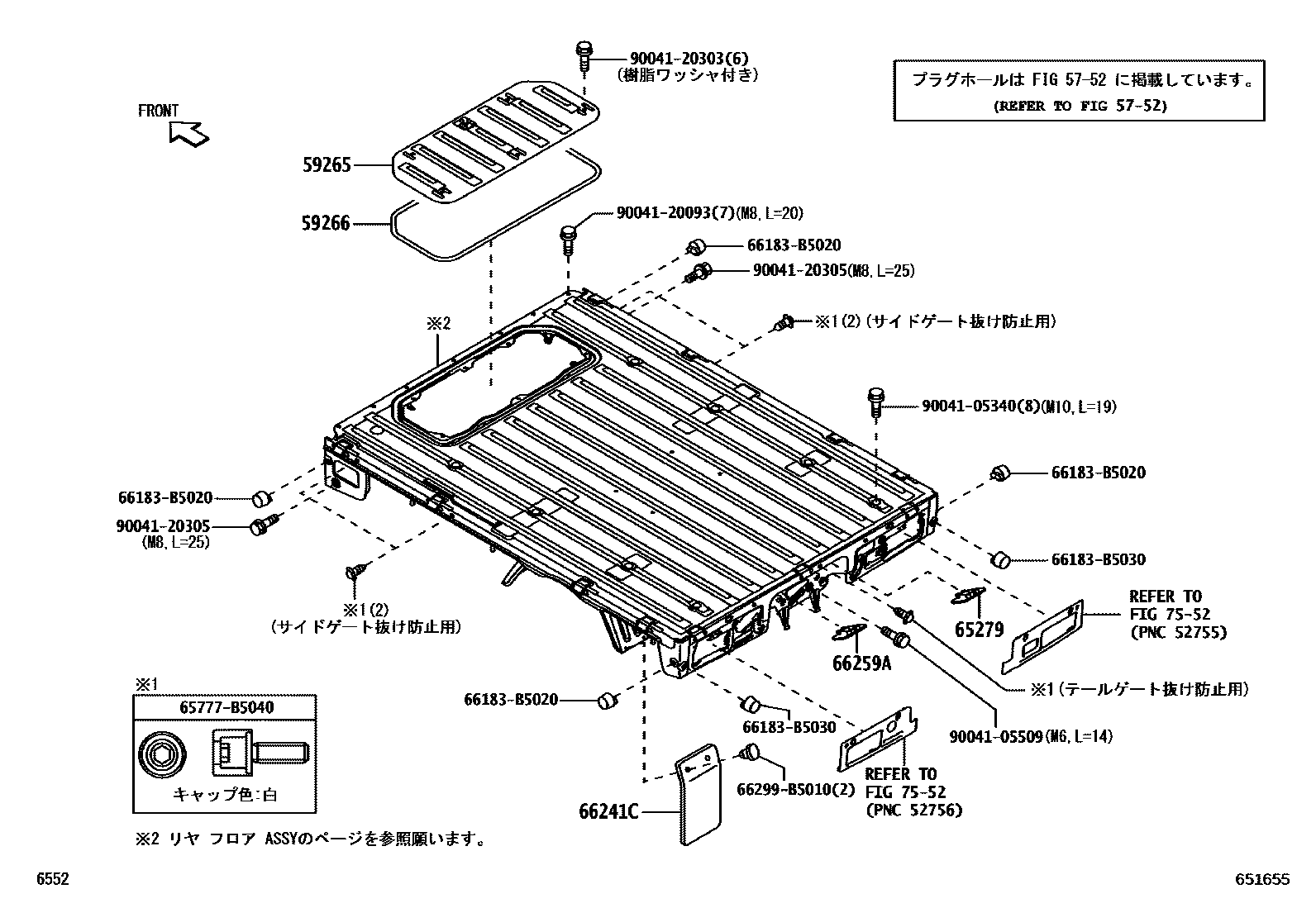

REAR BODY FLOOR & FENDER

0001 1����� 0002 1�����ASSY 0003 1�������

5752HOLE PLUG

→ Go to FIG 57-52

59265COVER SUB-ASSY, ENGINE SERVICE HOLE

main58401-B5110supersedes 65031-B5020iS500,510202112

59266SEAL, ENGINE SERVICE COVER, NO.2

main59266-B5010iS500,510202112

65279RETAINER

main76826-B5020iS500,510202112

66241CBUFFLE, RUBBER

main66241-97501×2iS500,510202112

66259ACOVER, REAR BODY FLOOR, REAR

main76826-B5020iS500,510202112

7552MOULDING

→ Go to FIG 75-52

65777B5040

main65777-B5040

66183B5020STOPPER, TAIL GATE

main66183-B5020

66183B5030STOPPER, TAIL GATE

main66183-B5030

66299B5010

main66299-B5010

9004105340

main90041-05340

9004105509

main90041-05509

9004120093

main90041-20093

9004120303

main90041-20303

9004120305

main90041-20305

16 parts on this diagram · 3 diagrams in section
