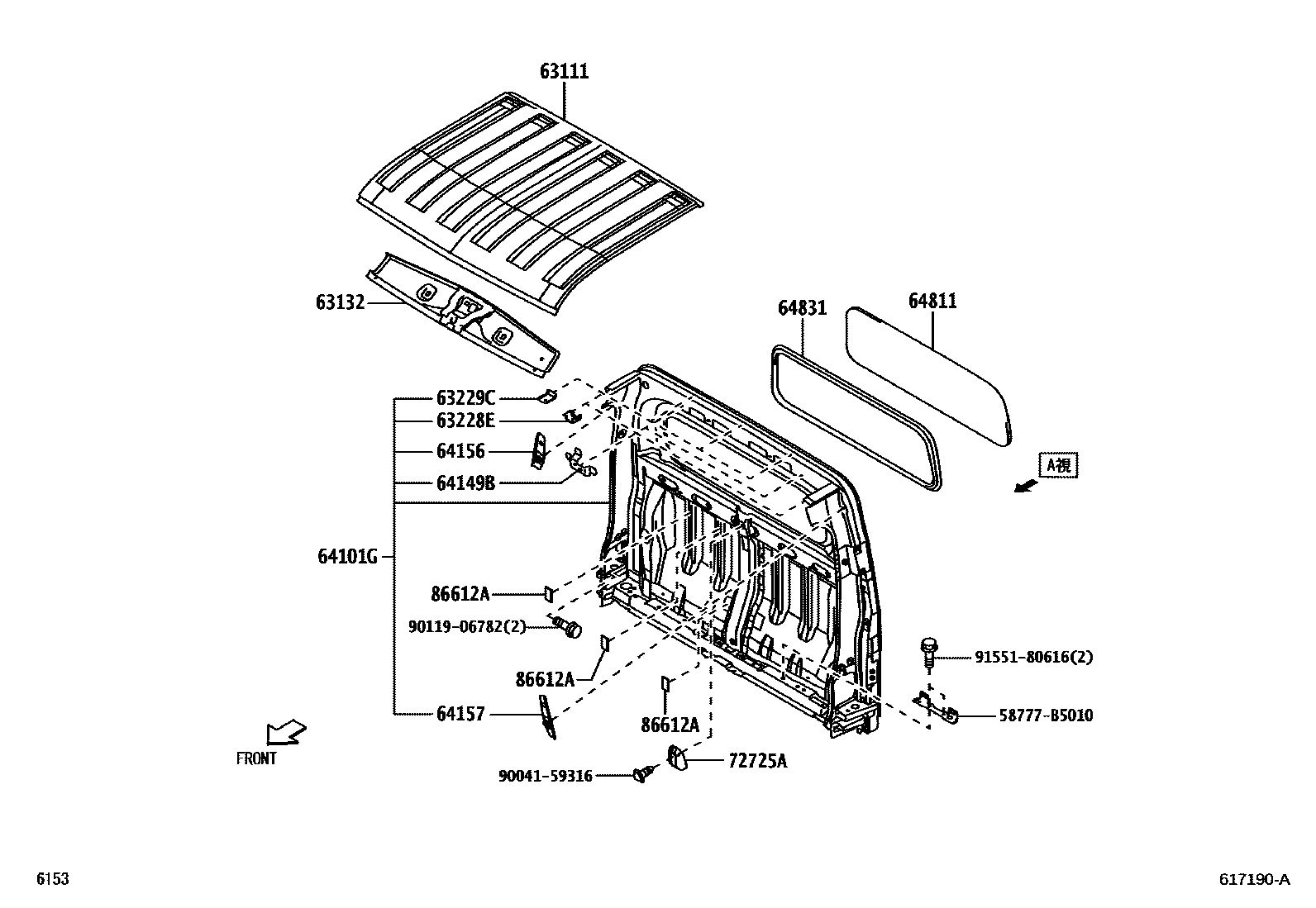

ROOF PANEL & BACK PANEL

0001 1 0002 1

63111PANEL, ROOF

main63111-B5050iS500,510202112

63132PANEL, WINDSHIELD HEADER, INNER

main63102-B5200iS500,510202112

63228EBRACKET, ROOF HEADLINING, NO.1

main63228-B5010×2iS500,510202112

63229CBRACKET, ROOF HEADLINING, NO.2

main63229-B5010×3iS500,510202112

64101GPANEL SUB-ASSY, BACK

main64101-B5440supersedes 64101-B5430iS500,510..EXT..PS1; S500,510..STD..PS1; S510..STD..PS1202112

64149BRETAINER, BACK PANEL HEADREST

main64149-B5040×2iS500,510202112

64156PLATE, BACK PANEL CORNER, RH

main64147-B5020iS500,510202112

64157PLATE, BACK PANEL CORNER, LH

main64148-B5010iS500,510202112

64811GLASS, BACK WINDOW

main64811-B5080supersedes 64811-B5070iS500,510..EXT; S500,510..STD202112

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-B5040iS500,510202112

72725AHOOK, FRONT SEATBACK

main72725-87201-C0iS500,510202112

BLACK,TRIM1#

86612APAD, SIREN

main47131-B5050×3iS500,510202112

58777B5010PLATFORM, TOOL BAG REST

main58777-B5010

9004159316

main90041-59316

9011906782

main90119-06782

9155180616

main91551-80616

16 parts on this diagram · 2 diagrams in section
