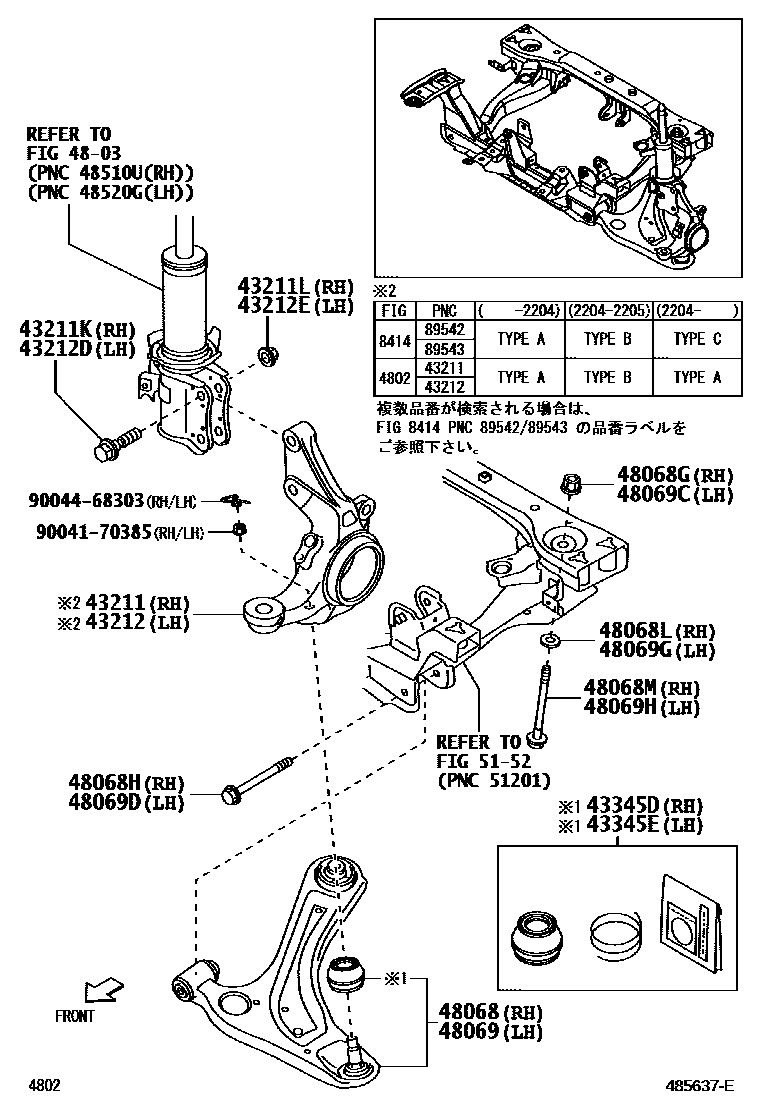

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B5080iS500,510202204-202205

main43211-B5081iS500,510202204

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-05620×2iS500,510202112

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70393×2iS500,510202112

43212KNUCKLE, STEERING, LH

main43212-B5080iS500,510202204-202205

main43212-B5081iS500,510202112-202204

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-05620×2iS500,510202112

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70393×2iS500,510202112

43345DCOVER, LOWER BALL JOINT DUST, RH

main43345-B9030iS500,510202112

43345ECOVER, LOWER BALL JOINT DUST, LH

main43345-B9030iS500,510202112

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B5071iS500,510202112

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-70342iS500,510202112

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-20349iS500,510202112

48068LWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main94622-51400iS500,510202112

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05524iS500,510202112

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B5071iS500,510202112

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-70342iS500,510202112

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-20349iS500,510202112

48069GWASHER(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main94622-51400iS500,510202112

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05524iS500,510202112

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

9004170385

main90041-70385

9004468303

main90044-68303

22 parts on this diagram · 1 diagram in section
