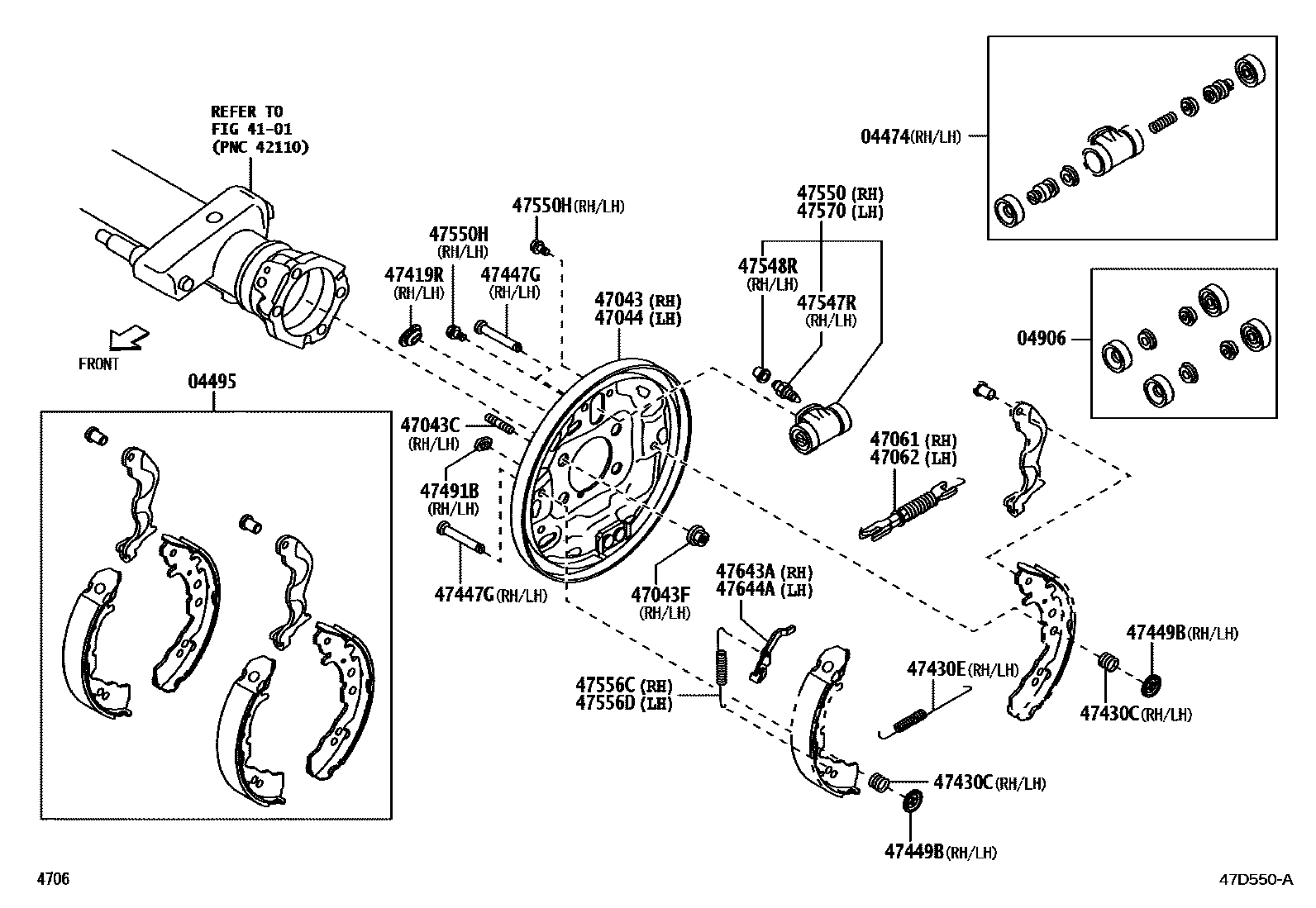

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-B5010×2iS500,510202112

04495SHOE KIT, REAR BRAKE

main04495-B5090iS500,510202112

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B5010iS500,510202112

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B2100iS500,510202112

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main46791-B5150×8iS500,510202112

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90041-70336×8iS500,510202112

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B2100iS500,510202112

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B5011iS500,510202112

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B5011iS500,510202112

47419RPLUG, HOLE(FOR REAR BRAKE)

main47491-B2030×2iS500,510202112

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01854×4iS500,510202112

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-B2020×2iS500,510202112

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87501×4iS500,510202112

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iS500,510202112

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010×2iS500,510202112

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iS500,510202112

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iS500,510202112

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47560-B5020iS500,510202112

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848×2iS500,510202112

47556CSPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE)

main47555-B2040iS500,510202112

47556DSPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE)

main47556-B2020iS500,510202112

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-B5020iS500,510202112

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-B5020iS500,510202112

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-B5020iS500,510202112

25 parts on this diagram · 1 diagram in section
