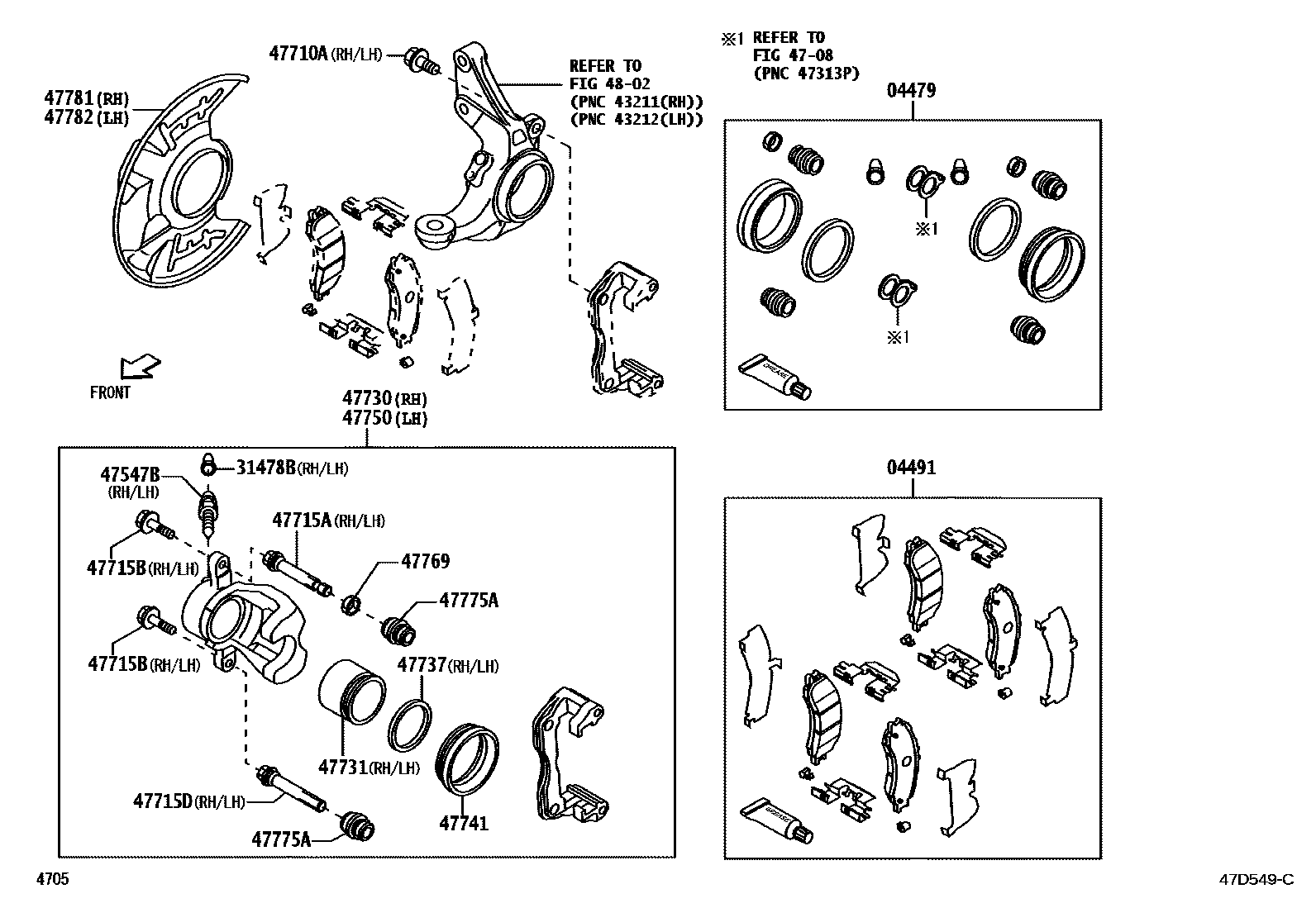

FRONT DISC BRAKE CALIPER & DUST COVER

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-B5061iS500,510202112

04491PAD KIT, DISC BRAKE, FRONT

main04465-B5091iS500,510202112

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-87501×2iS500,510202112

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-87204×2iS500,510202112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90041-05242×4iS500,510202112

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-B5010×2iS500,510202112

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-B5020×4iS500,510202112

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-B5010×2iS500,510202112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-B5050iS500,510202112

47731PISTON, FRONT DISC BRAKE

main47731-B5020×2iS500,510202112

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-97202×2iS500,510202112

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-87503×2iS500,510202112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-B5050iS500,510202112

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-B5020×2iS500,510202112

47775ABOOT, PIN

main47775-B5010×4iS500,510202112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-B5040iS500,510202112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-B5040iS500,510202112

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

19 parts on this diagram · 1 diagram in section
