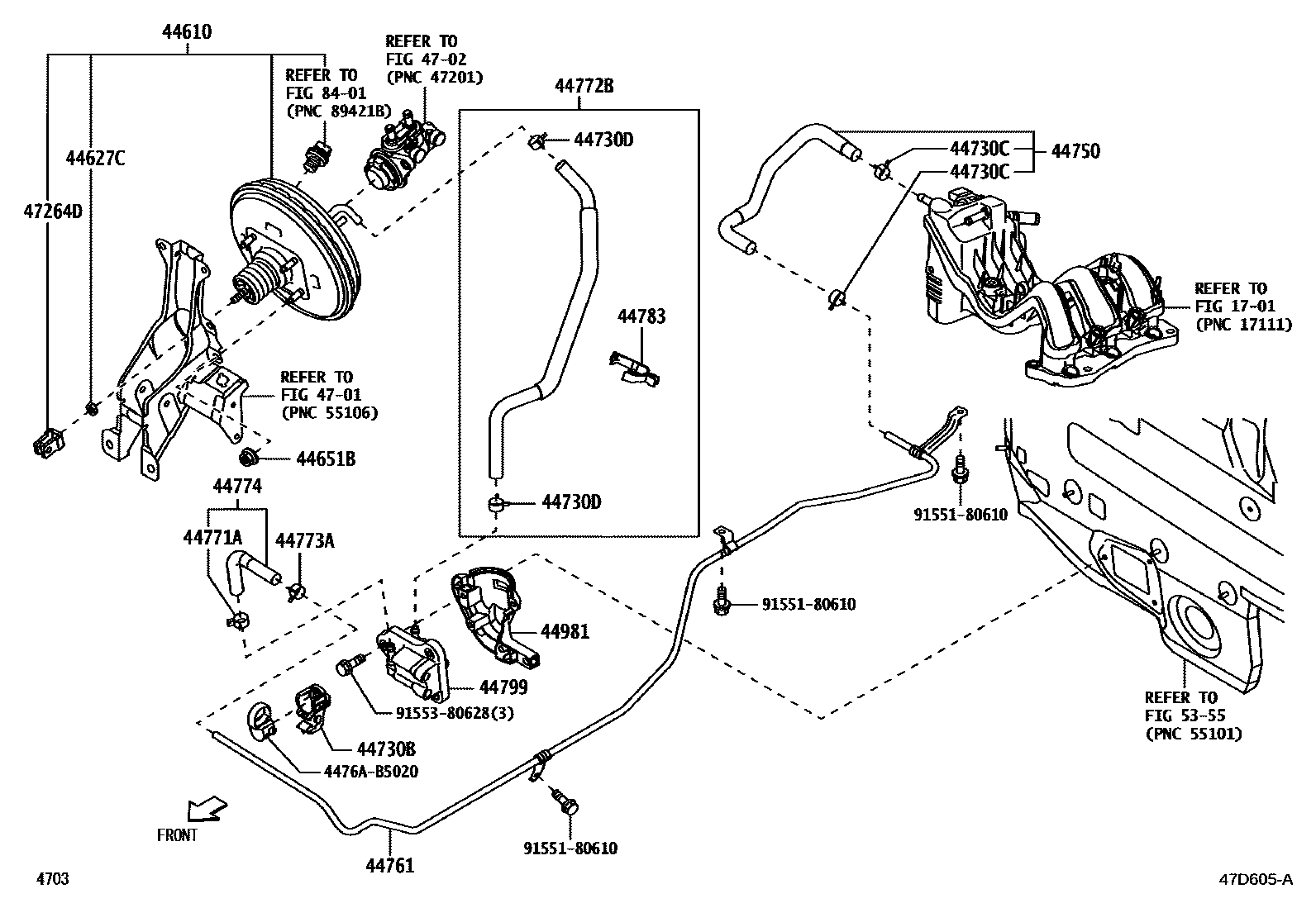

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B5260iS500,510202112

44627CNUT, BOOSTER SLEEVE CYLINDER

main94120-40800iS500,510202112

44651BNUT, BOOSTER

main90041-79300×4iS500,510202112

44730BCLAMP, VACUUM HOSE

main4476A-B5011iS500,510202112

44730CCLIP(FOR VACUUM HOSE)

main90044-67161×2iS500,510202112

44730DCLIP(FOR VACUUM HOSE, NO.1)

main90044-67161×2iS500,510202112

44750HOSE ASSY, VACUUM

main44750-B5570iS500,510202112

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-B5090iS500,510202112

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main90044-67161iS500,510202112

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-B5090iS500,510202112

44773ACLIP, NO.1(FOR VACUUM HOSE, NO.2)

main90044-67399iS500,510202112

44774HOSE, UNION TO CONNECTOR TUBE

main44774-B5080iS500,510202112

44783CLAMP, VACUUM HOSE

main44783-B5011iS500,510202112

44799WAY, BRAKE VACUUM HOSE

main47391-B5040iS500,510202112

44981COVER, BOOSTER

main48685-B5010iS500,510202112

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B2020iS500,510202112

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4476AB5020

main4476A-B5020

9155180610

main91551-80610

9155380628

main91553-80628

24 parts on this diagram · 1 diagram in section
