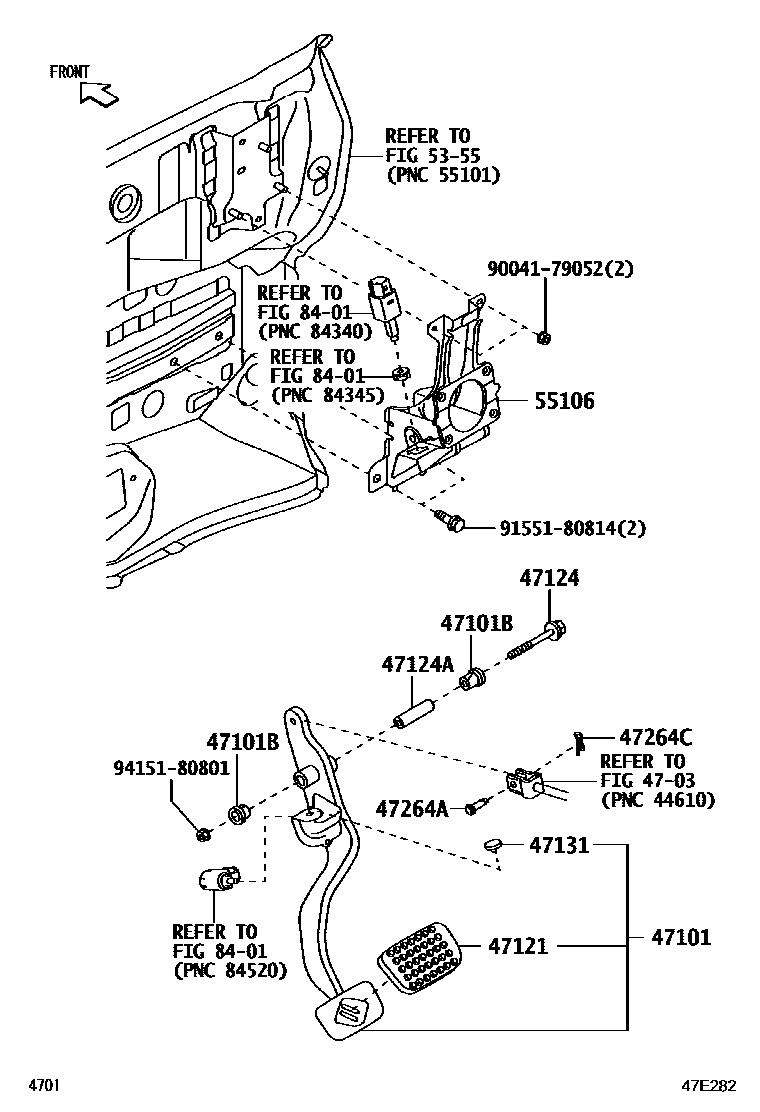

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47101-B5060iS500,510..5MT202112

main47110-B5440iS500,510..CVT202112

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iS500,510202112

47121PAD, BRAKE PEDAL

main31321-87503iS500,510..5MT202112

main47121-87202iS500,510..CVT202112

47124SHAFT, BRAKE PEDAL

main90041-05628iS500,510202112

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90045-60615iS500,510202112

47131CUSHION(FOR STOP LAMP SWITCH)

main90045-40158iS500,510..CVT202112

main90045-40226iS500,510..5MT202112

47264APIN(FOR PUSH ROD)

main90042-40151iS500,510202112

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iS500,510202112

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B5020iS500,510202112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179052

main90041-79052

9155180814

main91551-80814

9415180801

main94151-80801

15 parts on this diagram · 2 diagrams in section
