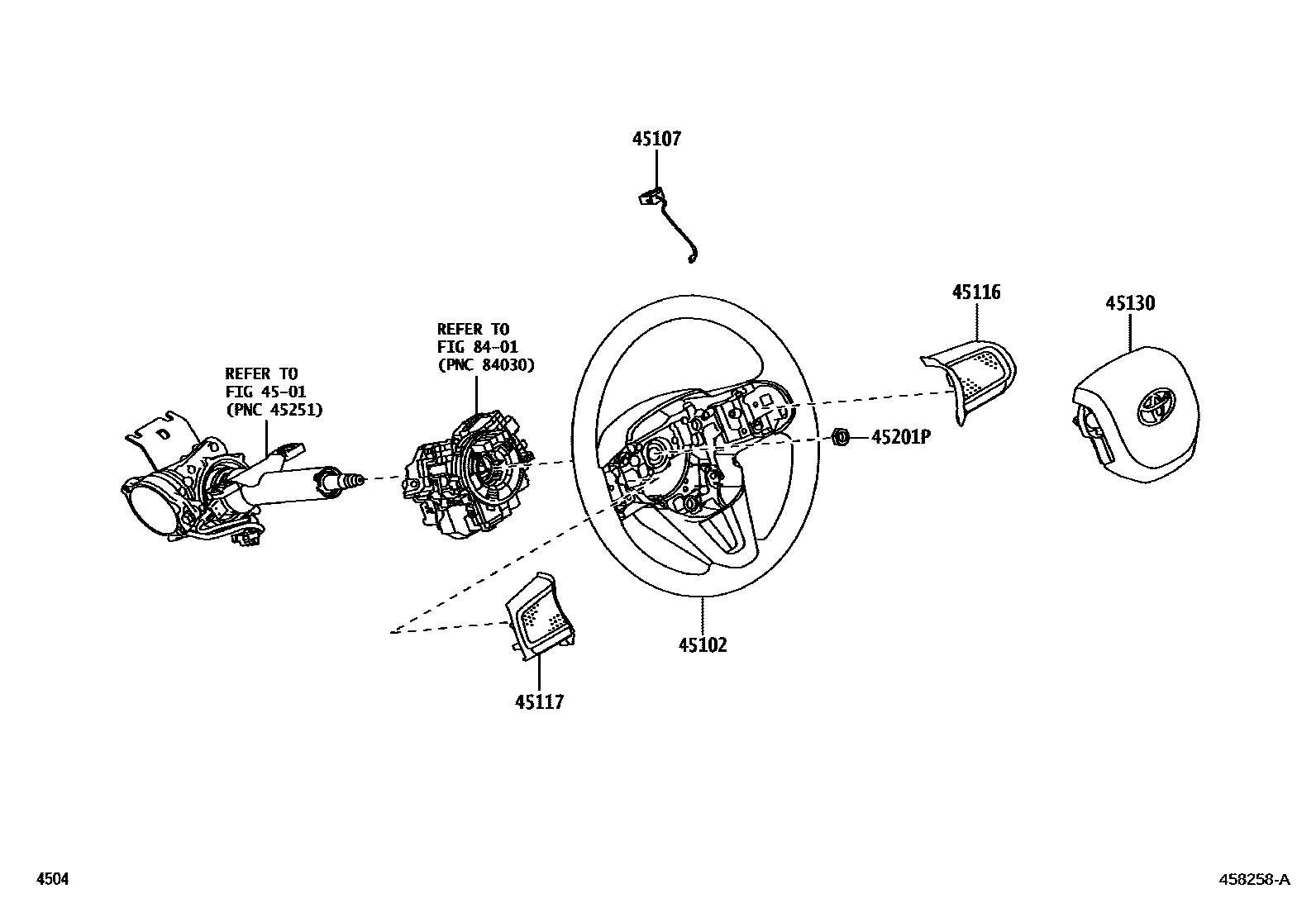

STEERING WHEEL

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45102WHEEL SUB-ASSY, STEERING

main45102-B2C80-C1iS500,510202112

BLACK,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-B2080iS500,510202112

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-B2010-C2iS500,510202112

BLACK,TRIM1#

45117ORNAMENT, STEERING WHEEL, NO.2

main45117-B2010-C2iS500,510202112

BLACK,TRIM1#

45130BUTTON ASSY, HORN

main45130-B5220-C0iS500,510..STD202112

BLACK,TRIM1#

main45130-B5230-C0iS500,510..EXT202112

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90041-70014iS500,510202112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8 parts on this diagram · 1 diagram in section
