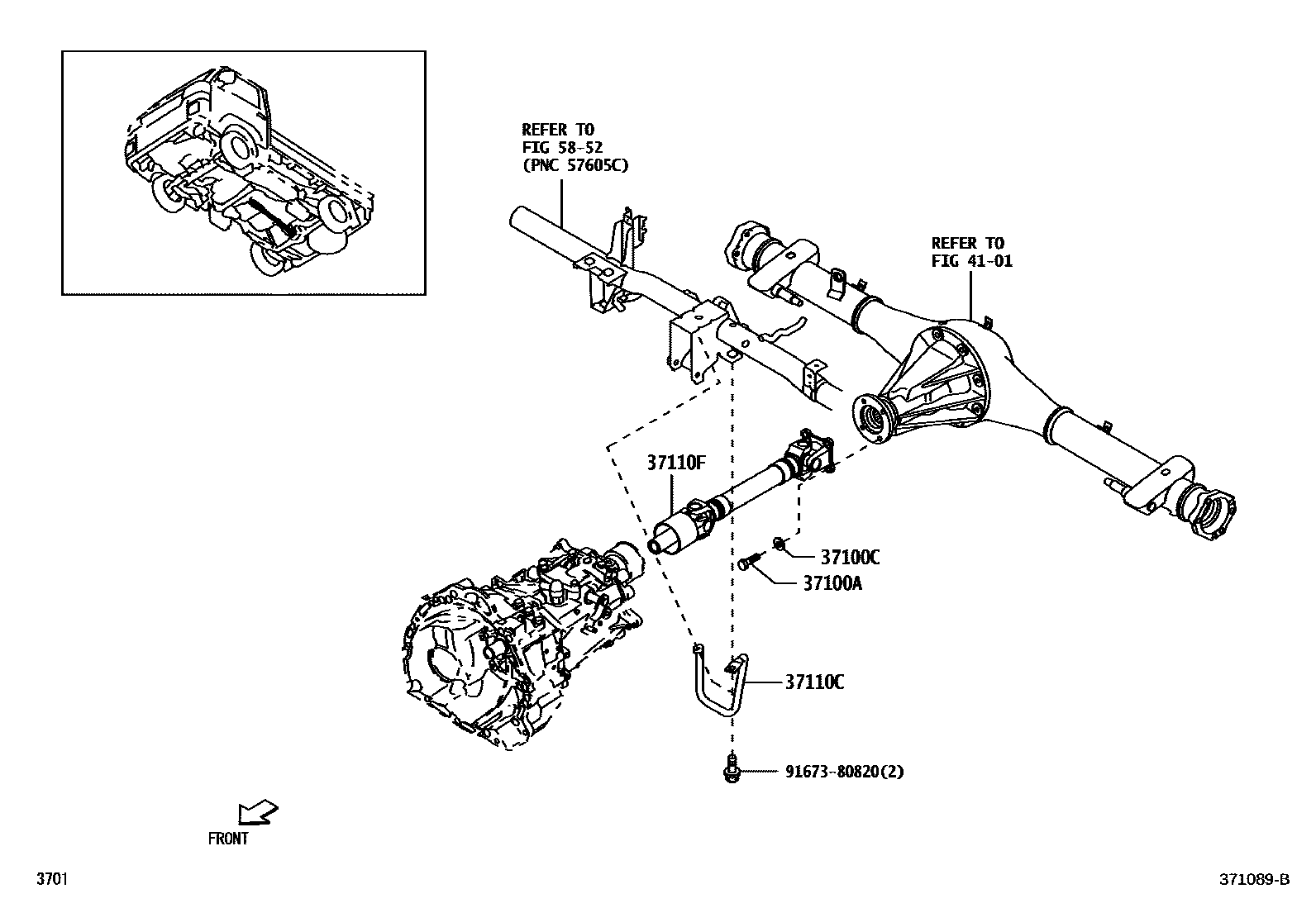

PROPELLER SHAFT & UNIVERSAL JOINT

0001 12WD 0002 14WD

37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90041-01494iS500,510202112

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main94512-01000iS500,510202112

37110CBRACKET, PROPELLER SHAFT GUARD

main51568-B5020iS510..STD..5MT202112

main51568-B5060iS500202112

37110FSHAFT ASSY, PROPELLER, REAR

main37110-97513iS510..EXT..5MT202112

main37110-B5030iS510..STD..5MT202112

main37110-B5100iS500..5MT202112

main37110-B5170iS500..CVT202112

main37110-B5180iS510..CVT202112

4101

5852

9167380820

main91673-80820

7 parts on this diagram · 2 diagrams in section
