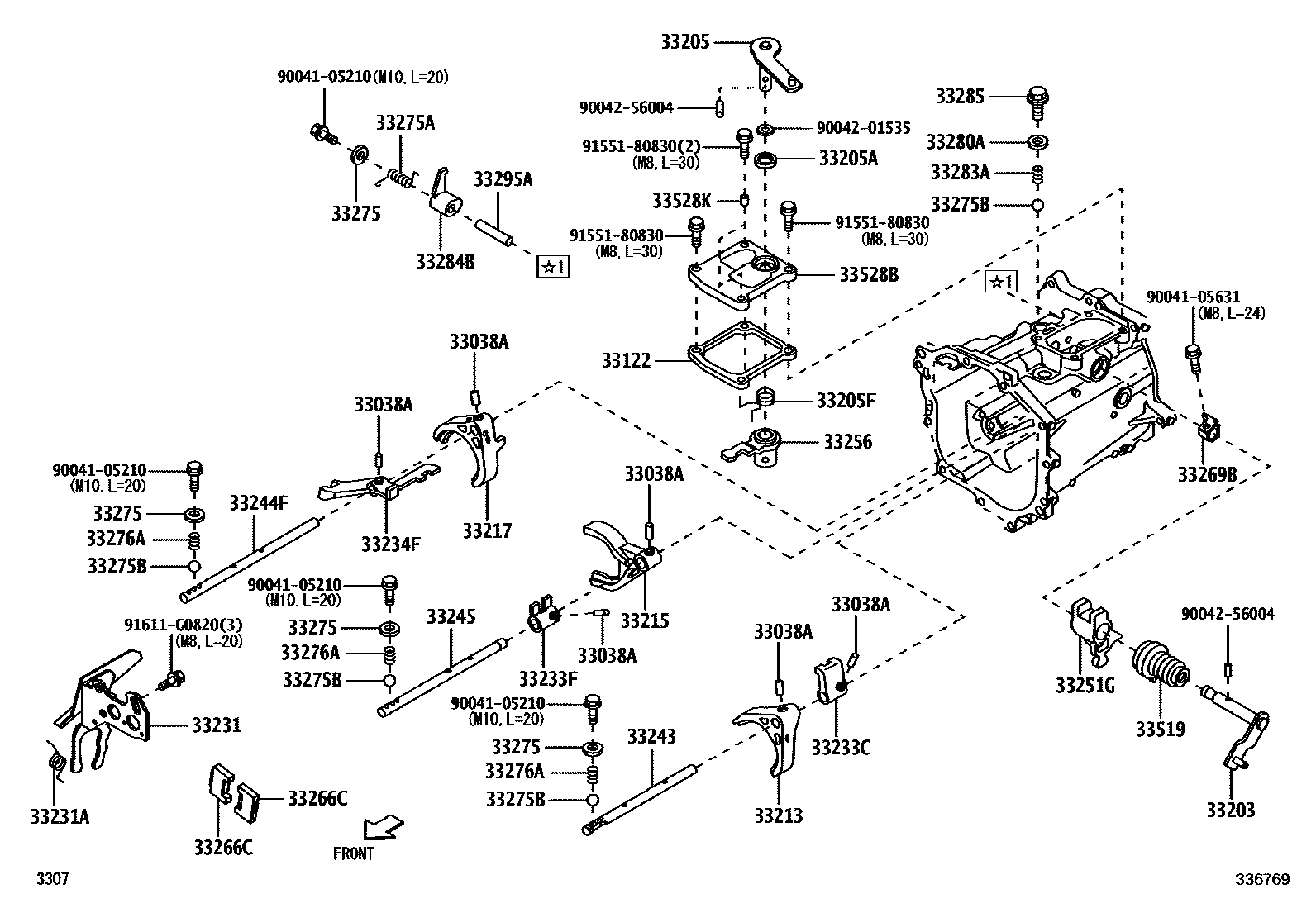

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33038APIN, SLOTTED SPRING
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33213FORK, 1ST & 2ND SHIFT
33215FORK, 3RD & 4TH SHIFT
33217FORK, 5TH & REVERSE SHIFT
33231HEAD, REVERSE SHIFT
33231ASPRING, REVERSE SHIFT RESTRICT
33233CHEAD, 1ST & 2ND SHIFT
33233FHEAD, 3RD & 4TH SHIFT
33234FHEAD, REVERSE & 5TH SHIFT
33243SHAFT, 1ST & 2ND SHIFT FORK
33244FSHAFT,5TH & REVERSE SHIFT
33245SHAFT, 3RD & 4TH SHIFT FORK
33251GLEVER, SHIFT, INNER
33256LEVER, SELECT INNER
33266CPLATE, SHIFT INTERLOCK
33269BHEAD,LEVER SHAFT NEUTRAL DETECTION
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280AGASKET, REVERSE RESTRICT PIN
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33284BPIN, REVERSE RESTRICT, NO.2
33285HOLDER, REVERSE RESTRICT PIN
33295ASHAFT, REVERSE RESTRICT
33519BOOT, CONTROL SHAFT DUST
33528BCOVER, CONTROL SHAFT
33528KPIN, RING (FOR CONTROL SHAFT COVER SET BOLT)
9004105210
main90041-05210
9004105631
main90041-05631
9004201535
main90042-01535
9004256004
main90042-56004
9155180830
main91551-80830
91611G0820
main91611-G0820
39 parts on this diagram · 1 diagram in section
