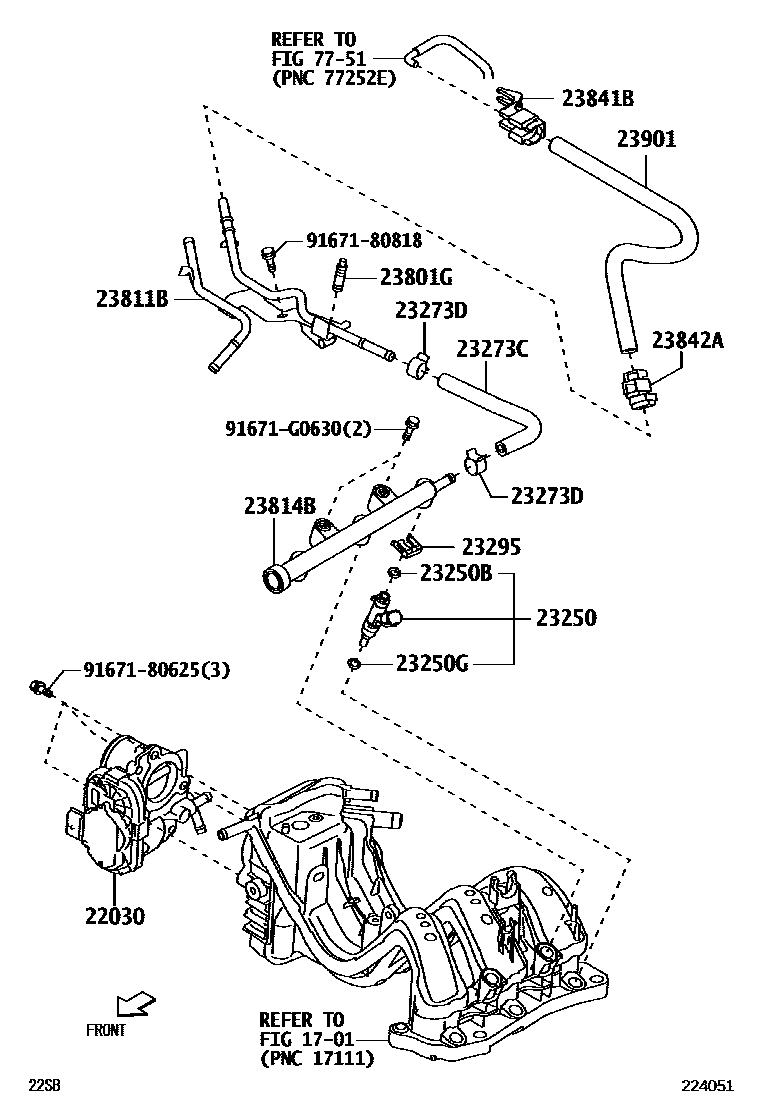

FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-B2070iKFVE..S500,510202112

23250INJECTOR ASSY, FUEL

main23250-B2050×3iKFVE..S500,510202112

23250BRING, O(FOR FUEL INJECTOR)

main90043-01349×3iKFVE..S500,510202112

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main90043-01348×3iKFVE..S500,510202112

23273CHOSE, FUEL, NO.2

main23273-B2020iKFVE..S500,510202112

23273DCLIP(FOR FUEL HOSE NO.2)

main90044-67400×2iKFVE..S500,510202112

23295HOLDER, INJECTOR, NO.1

main23295-B2020×3iKFVE..S500,510202112

23801GBOLT, UNION(FOR FUEL PIPE)

main90041-26008iKFVE..S500,510202112

23811BPIPE, FUEL, NO.1

main23811-B5040iKFVE..S500,510202112

23814BPIPE, FUEL DELIVERY

main23814-B2040iKFVE..S500,510202112

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010iKFVE..S500,510202112

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-B5010iKFVE..S500,510202112

23901TUBE SUB-ASSY, FUEL

main23901-B5010iKFVE..S500,510202112

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9167180625

main91671-80625

9167180818

main91671-80818

91671G0630

main91671-G0630

18 parts on this diagram · 1 diagram in section
