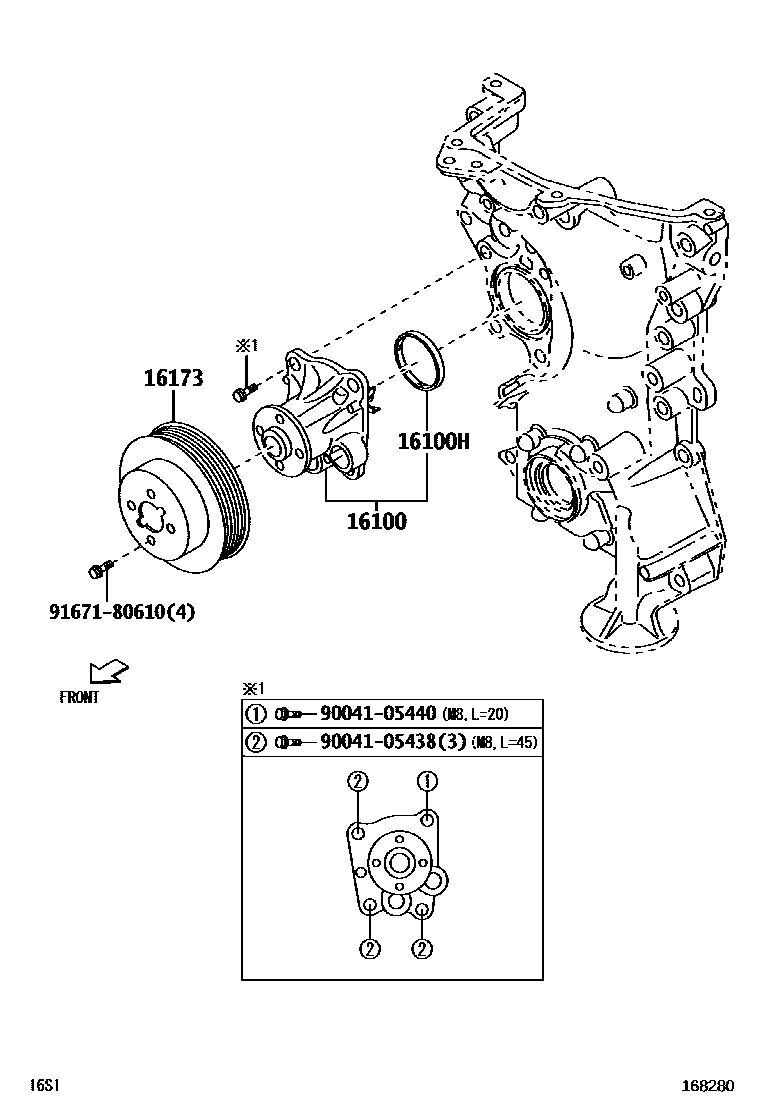

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-B9500iKFVE..S500,510202112

16100HRING, O(FOR WATER PUMP)

main90043-01323iKFVE..S500,510202112

16173PULLEY, WATER PUMP

main16173-B2070iKFVE..S500,510202112

9004105438

main90041-05438

9004105440

main90041-05440

9167180610

main91671-80610

6 parts on this diagram · 1 diagram in section
