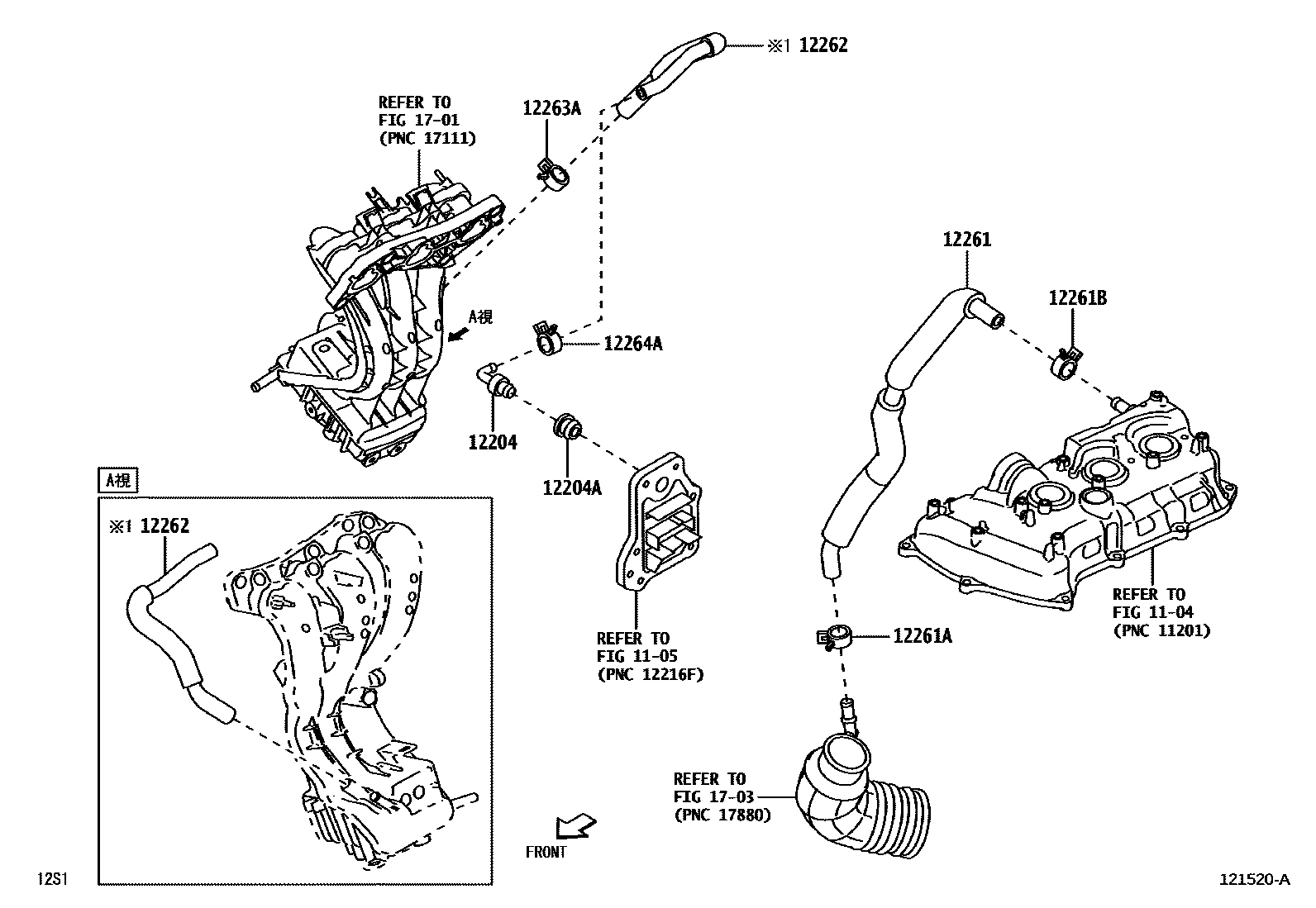

VENTILATION HOSE

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

12204VALVE SUB-ASSY, VENTILATION

main12204-B2020iKFVE..S500,510202112

12204AGROMMET(FOR VENTILATION SYSTEM)

main90044-80652iKFVE..S500,510202112

12261HOSE, VENTILATION

main12261-B5040iKFVE..S500,510202112

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90044-66036iKFVE..S500,510202112

12261BCLIP OR CLAMP(FOR VENTILATION HOSE)

main90044-67240iKFVE..S500,510202112

12262HOSE, VENTILATION, NO.2

main12261-B2200iKFVE..S500,510202112

12263ACLIP(FOR VENTILATION HOSE)

main96137-41901iKFVE..S500,510202112

12264ACLIP(FOR VENTILATION HOSE)

main90044-67314iKFVE..S500,510202112

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

12 parts on this diagram · 1 diagram in section
