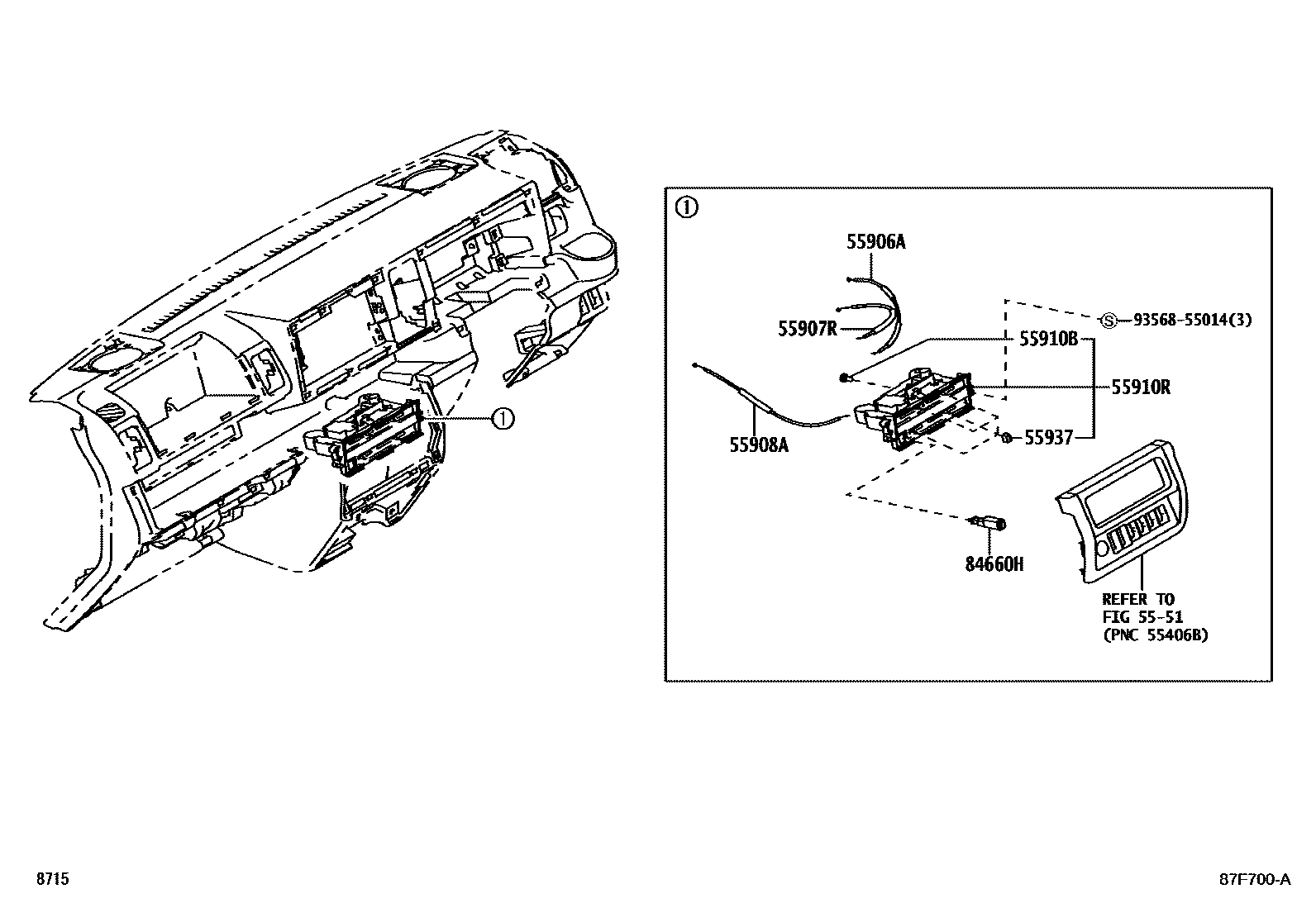

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ ���� 0002 1���� 0003 1���

5551

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-B5010iS500,510201409-201610

55907RCABLE SUB-ASSY, TEMPERATURE CONTROL

main55907-B5010iS500,510201409-201610

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-B5010iS500,510201409-201610

55910BBULB, HEATER CONTROL

main9004C-81018iS500,510201409-201610

55910RCONTROL ASSY, HEATER

main55910-B5080iS500,510201409-201610

sub55910-B5081

main55910-B5081iS500,510201610

55937KNOB, HEATER CONTROL LEVER

main55925-B5010iS500,510201409-201610

84660HSWITCH ASSY, COOLER CONTROL

main84660-B5020iS500,510201409-201610

9356855014

main93568-55014

9 parts on this diagram · 3 diagrams in section
